Sphere

Base:

UBlueprintFunctionLibrary

Type:

UNSpherePickerLibrary / FNSpherePicker

Header File:

NexusActorPools/Public/NSpherePickerLibrary.h

Provides various functions for generating points [i]nside or [o]n the surface of a sphere using different random generation strategies (deterministic, non-deterministic, seeded).

The UNSpherePickerLibrary wraps the native FNSpherePicker functionality in a Blueprint friendly manner. Should you be wanting to utilize a picker in native code it is best to directly reference FNSpherePicker directly to avoid the abstraction layer as it has a similar API.

Methods

tip

There are Simple variants of all of these methods which removes the inner exclusion when not needed as a minor optimization.

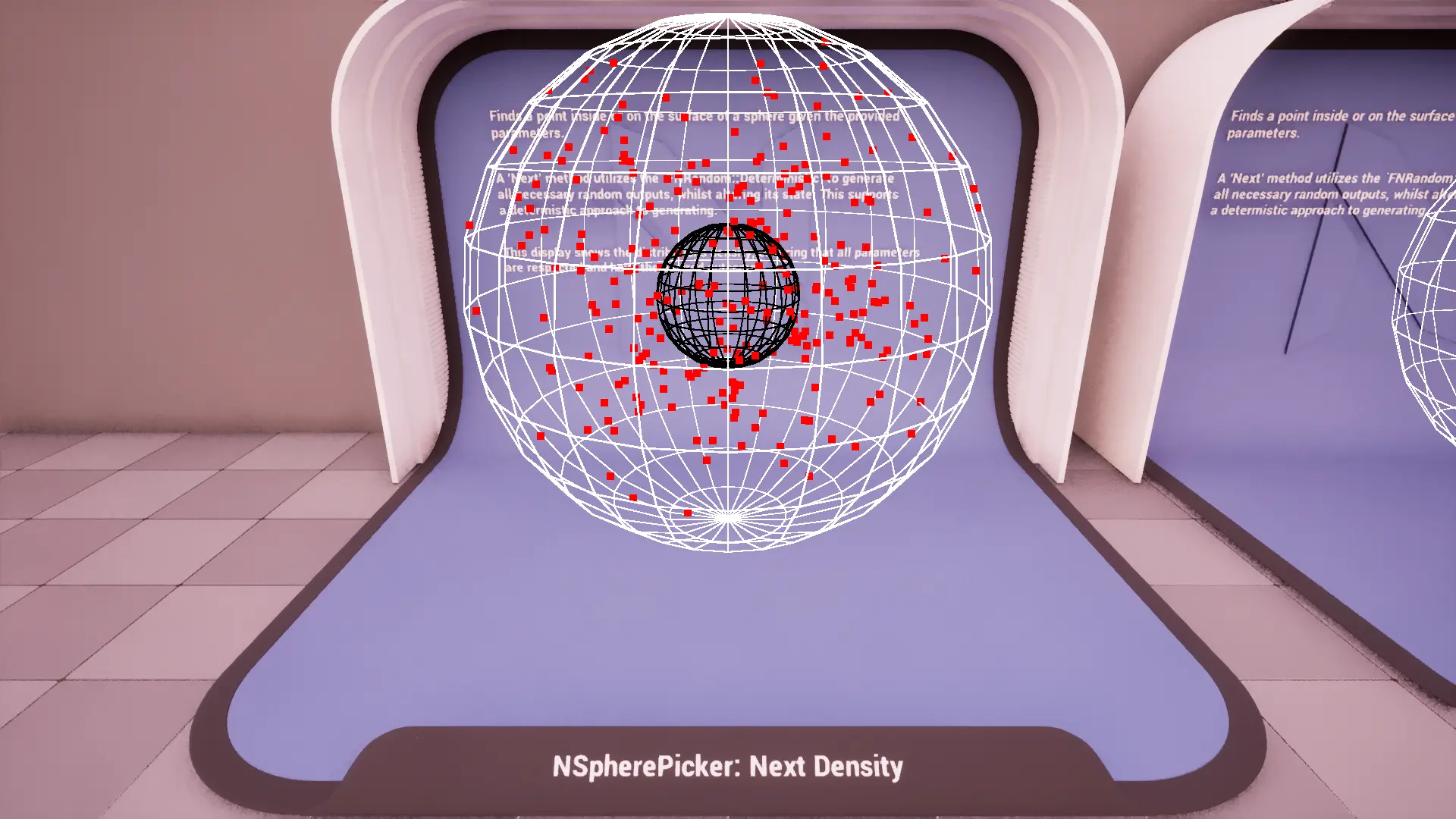

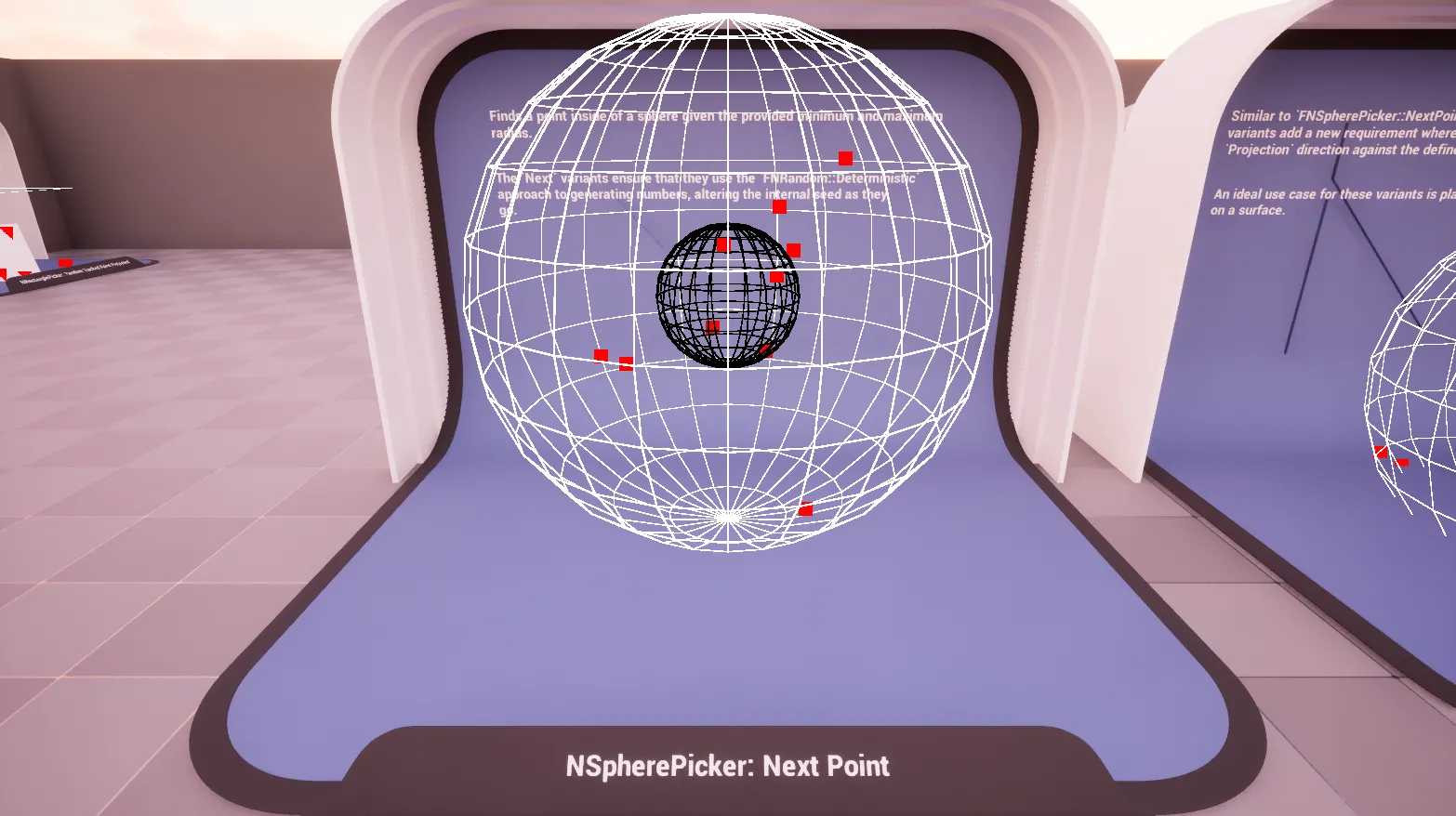

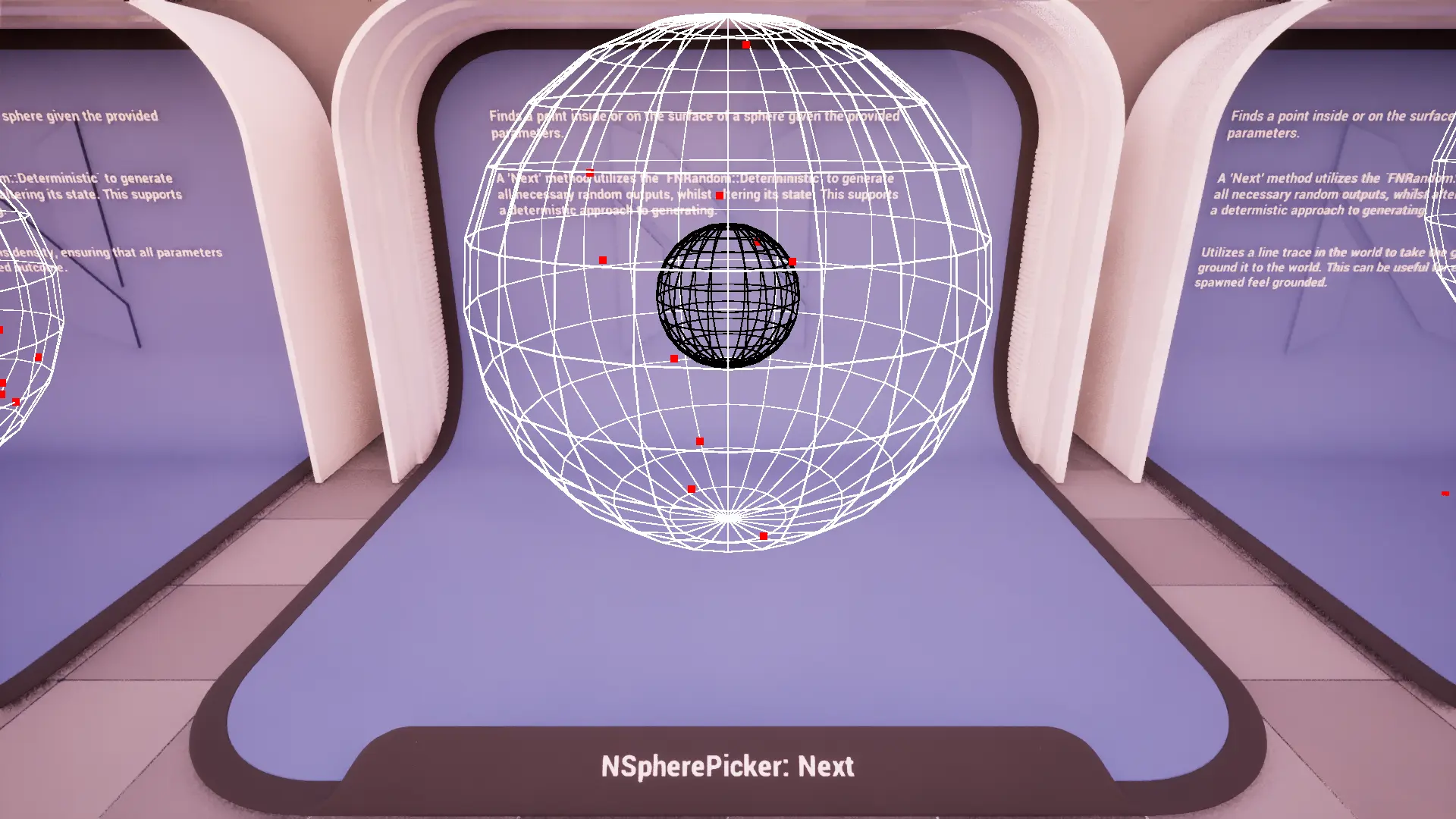

Next Point (IO)

Generates a deterministic point [i]nside or [o]n the surface of a sphere.

info

Uses FNRandom::Deterministic to ensure reproducible results.

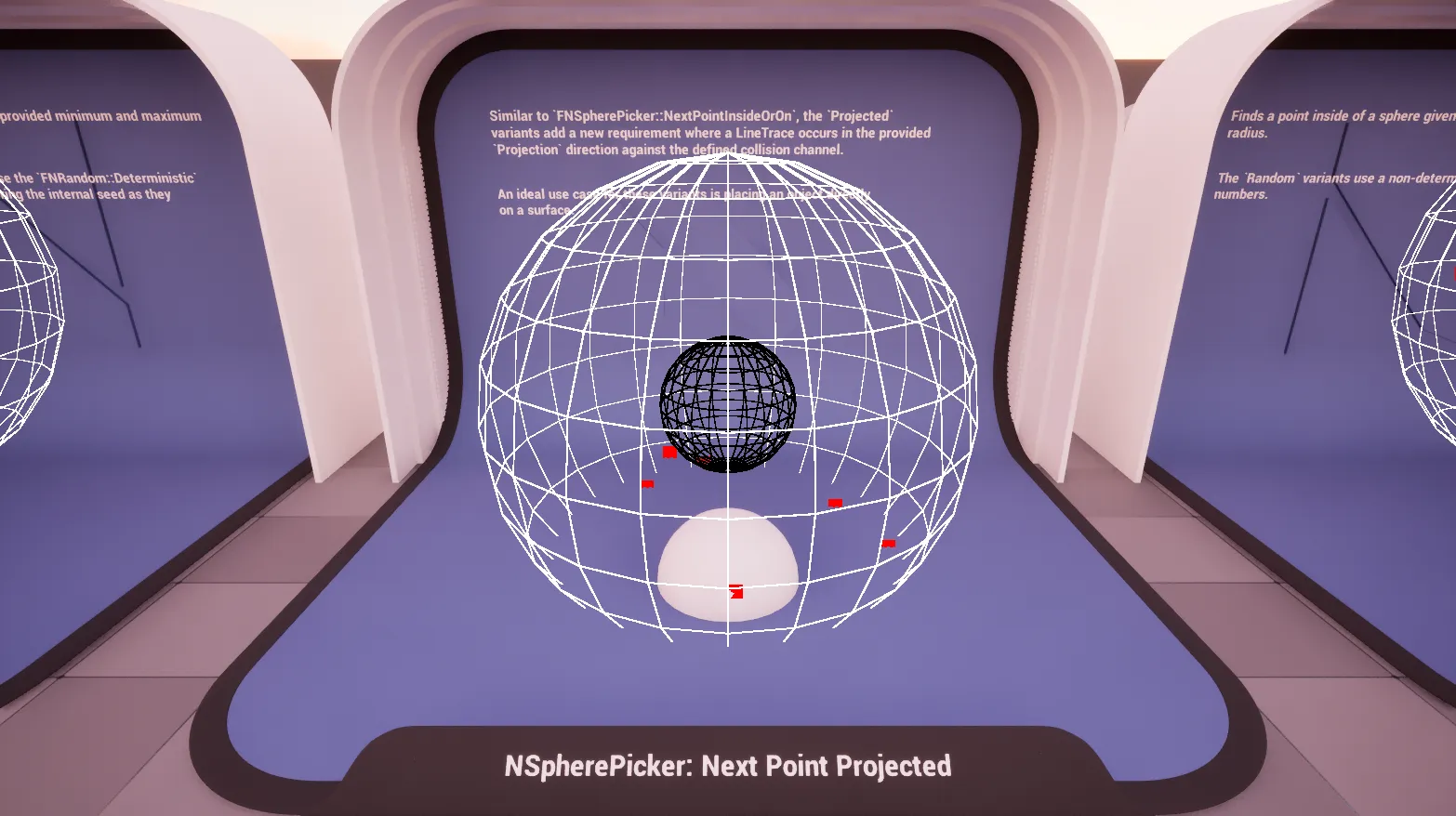

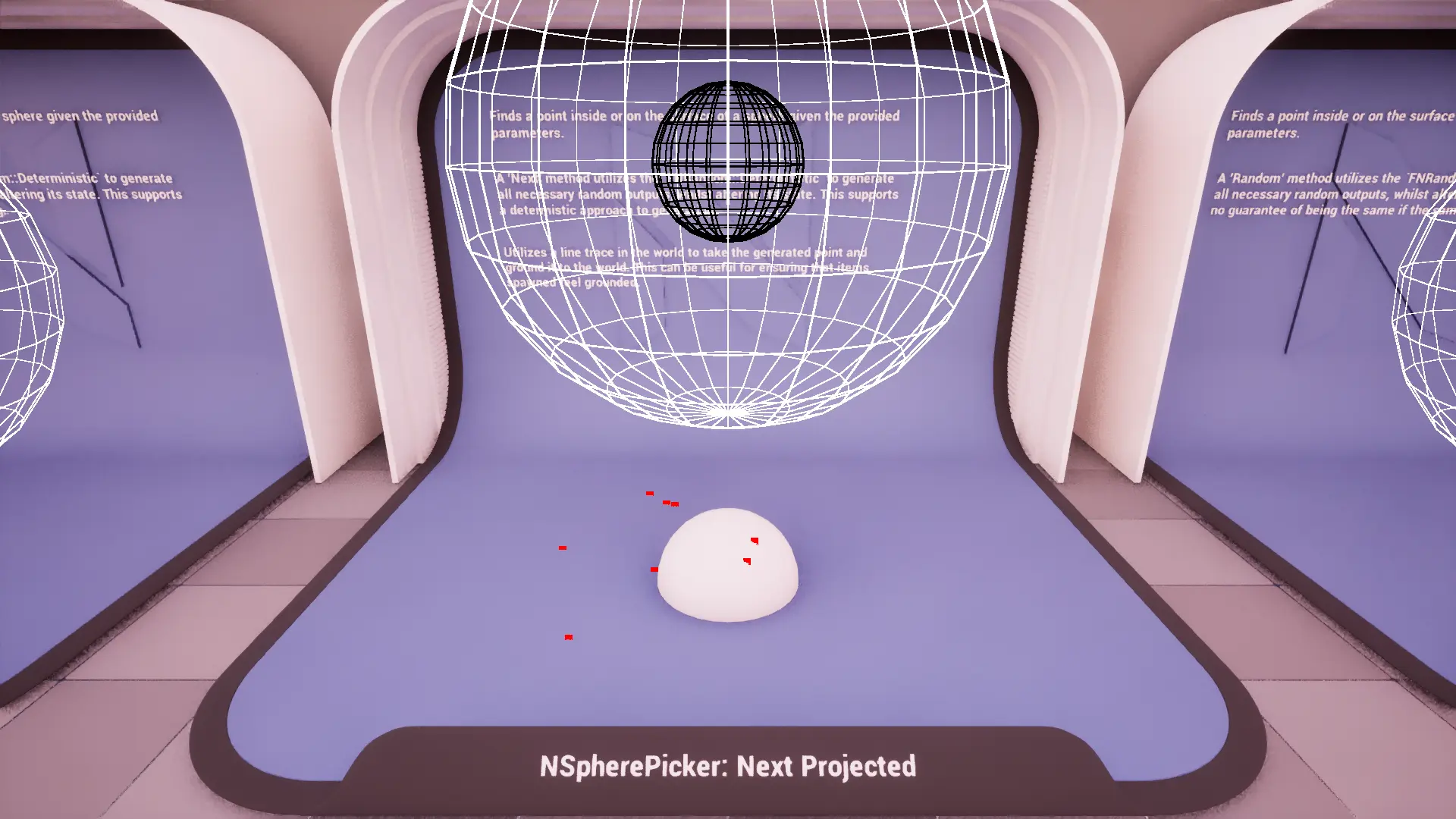

Next Point Projected (IO)

Generates a deterministic point [i]nside or [o]n the surface of a sphere, then projects it onto a surface in the world.

info

Uses FNRandom::Deterministic to ensure reproducible results.

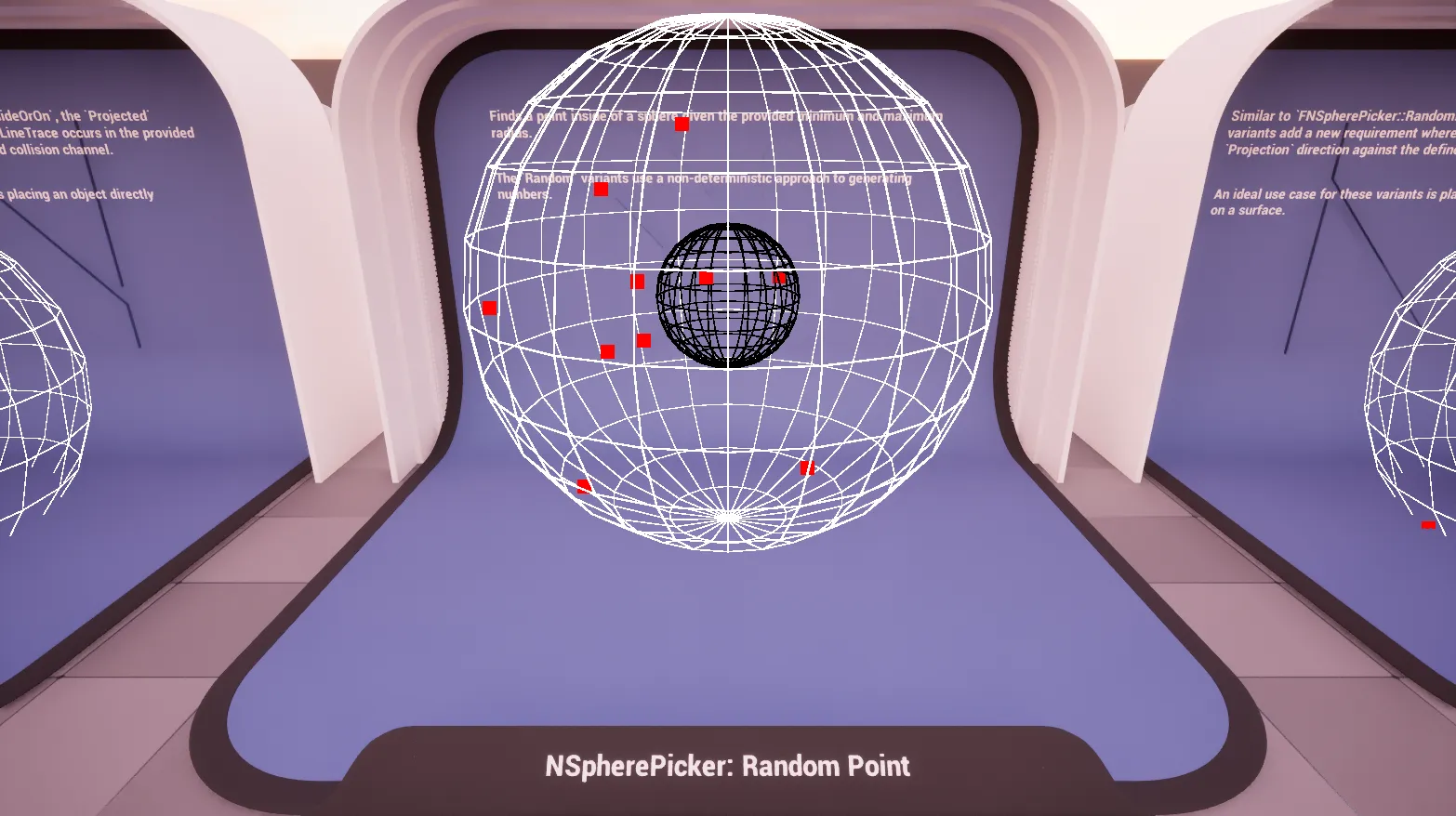

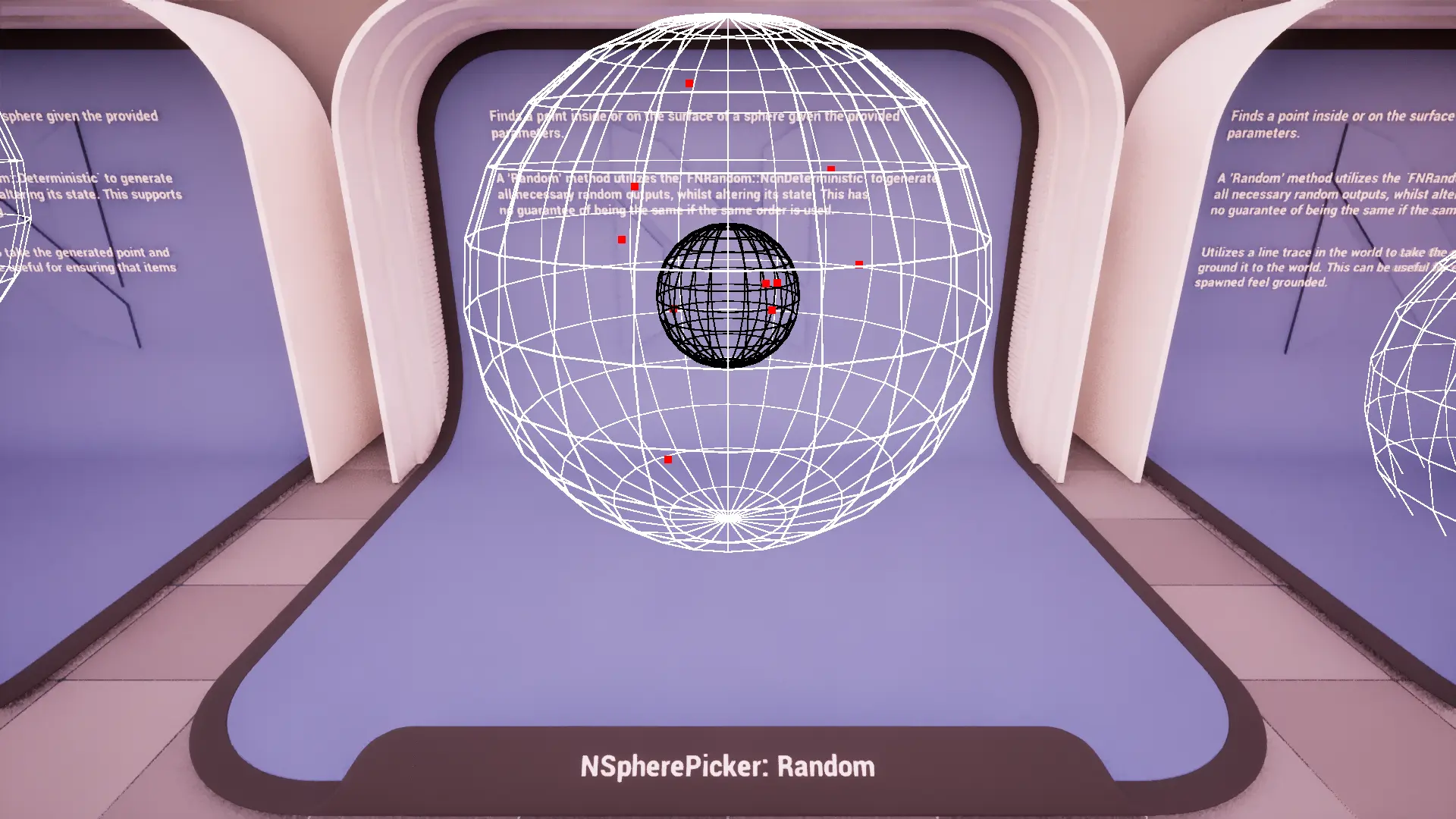

Random Point (IO)

Generates a random point [i]nside or [o]n the surface of a sphere.

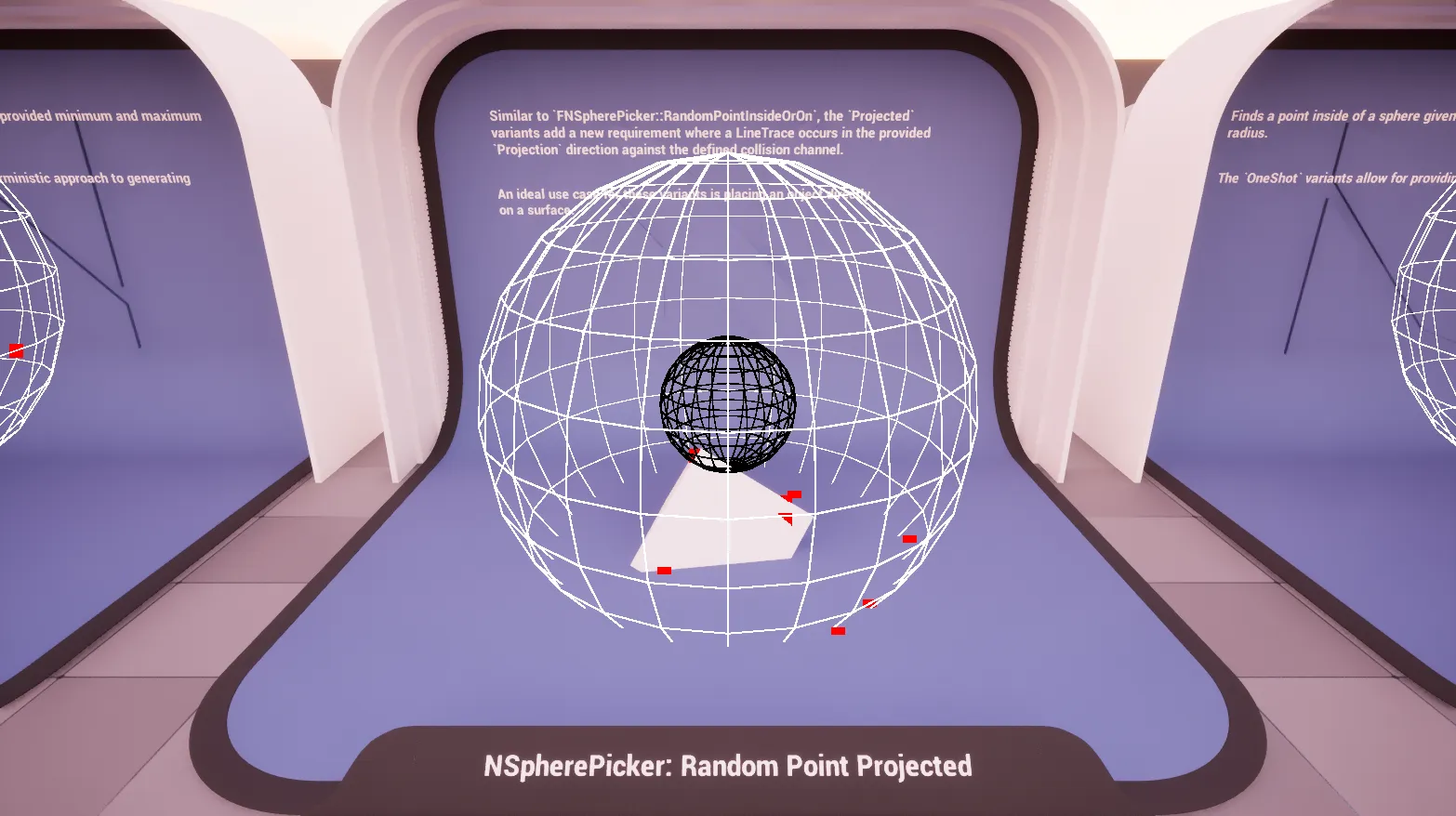

Random Point Projected (IO)

Generates a random point [i]nside or [o]n the surface of a sphere, then projects it onto a surface in the world.

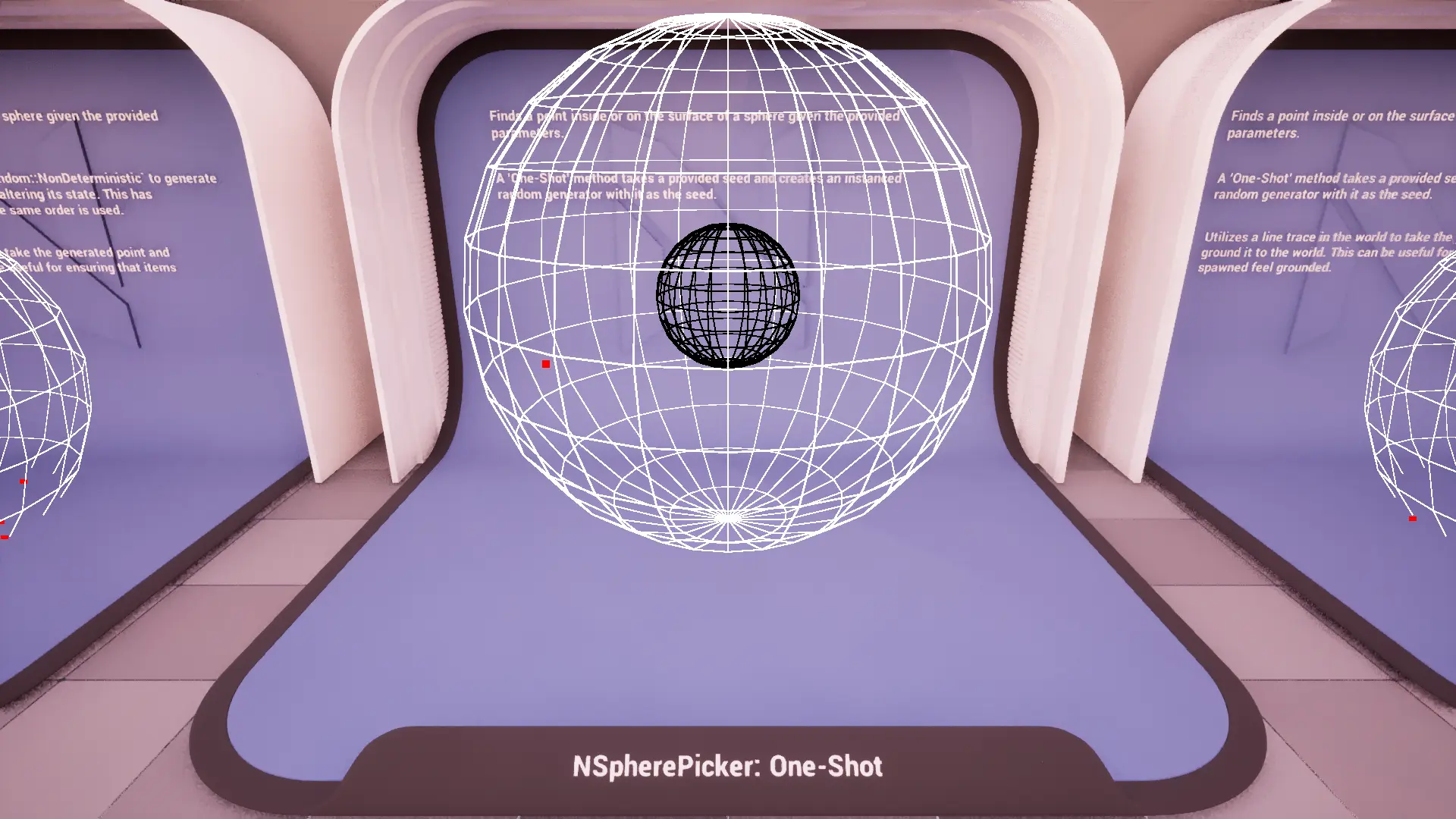

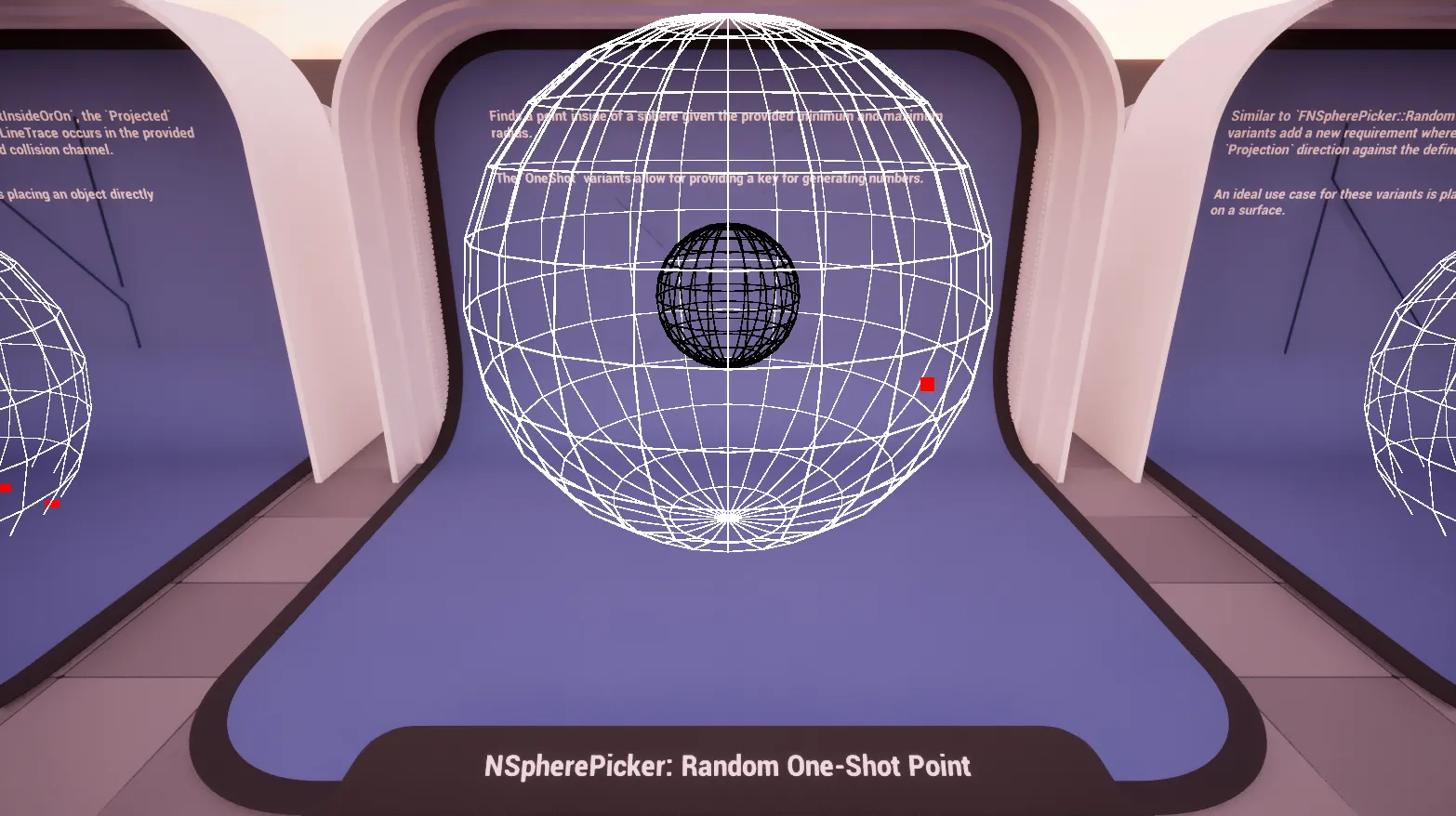

Random One-Shot Point (IO)

Generates a random point [i]nside or [o]n the surface of a sphere using a provided seed.

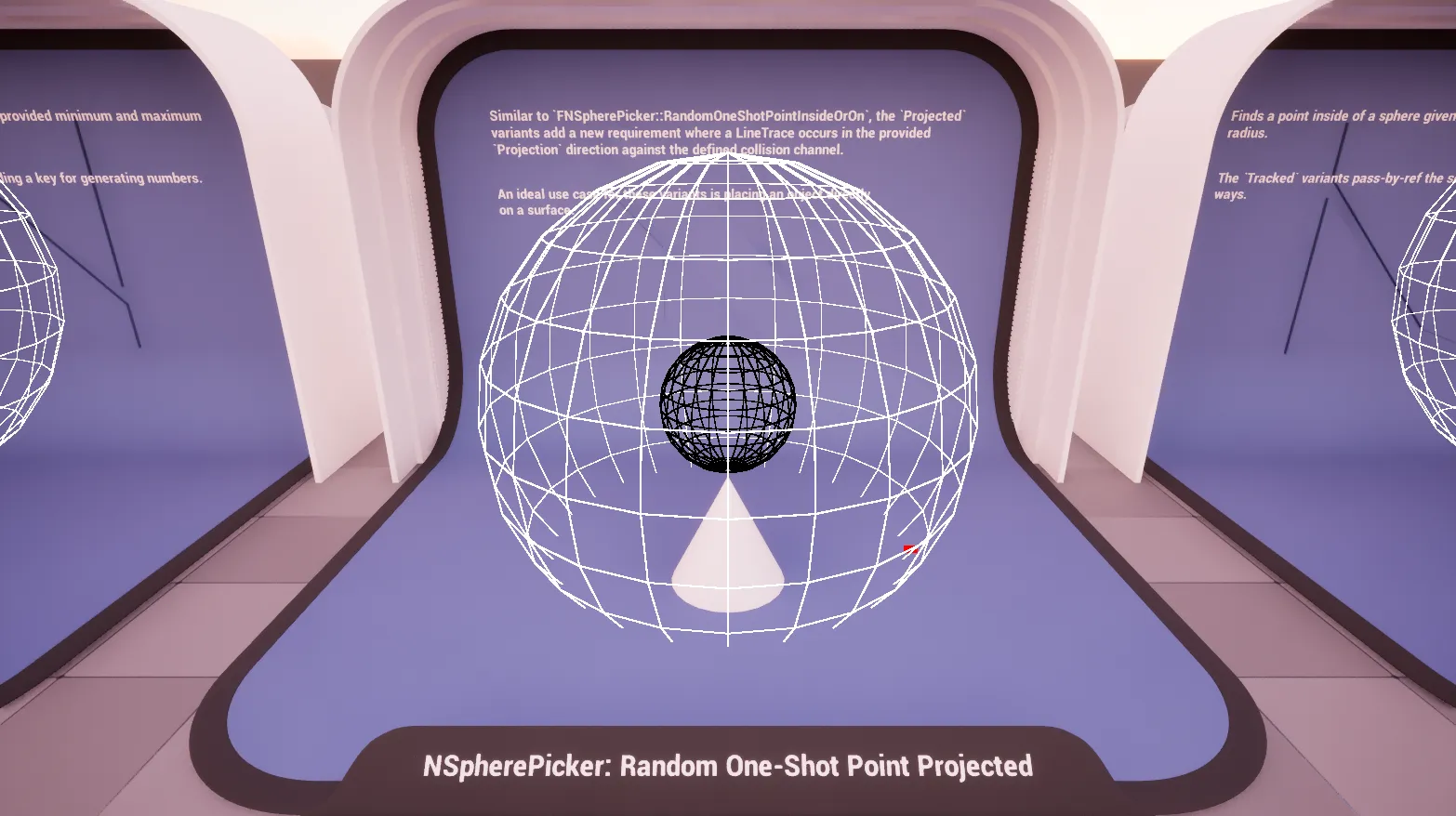

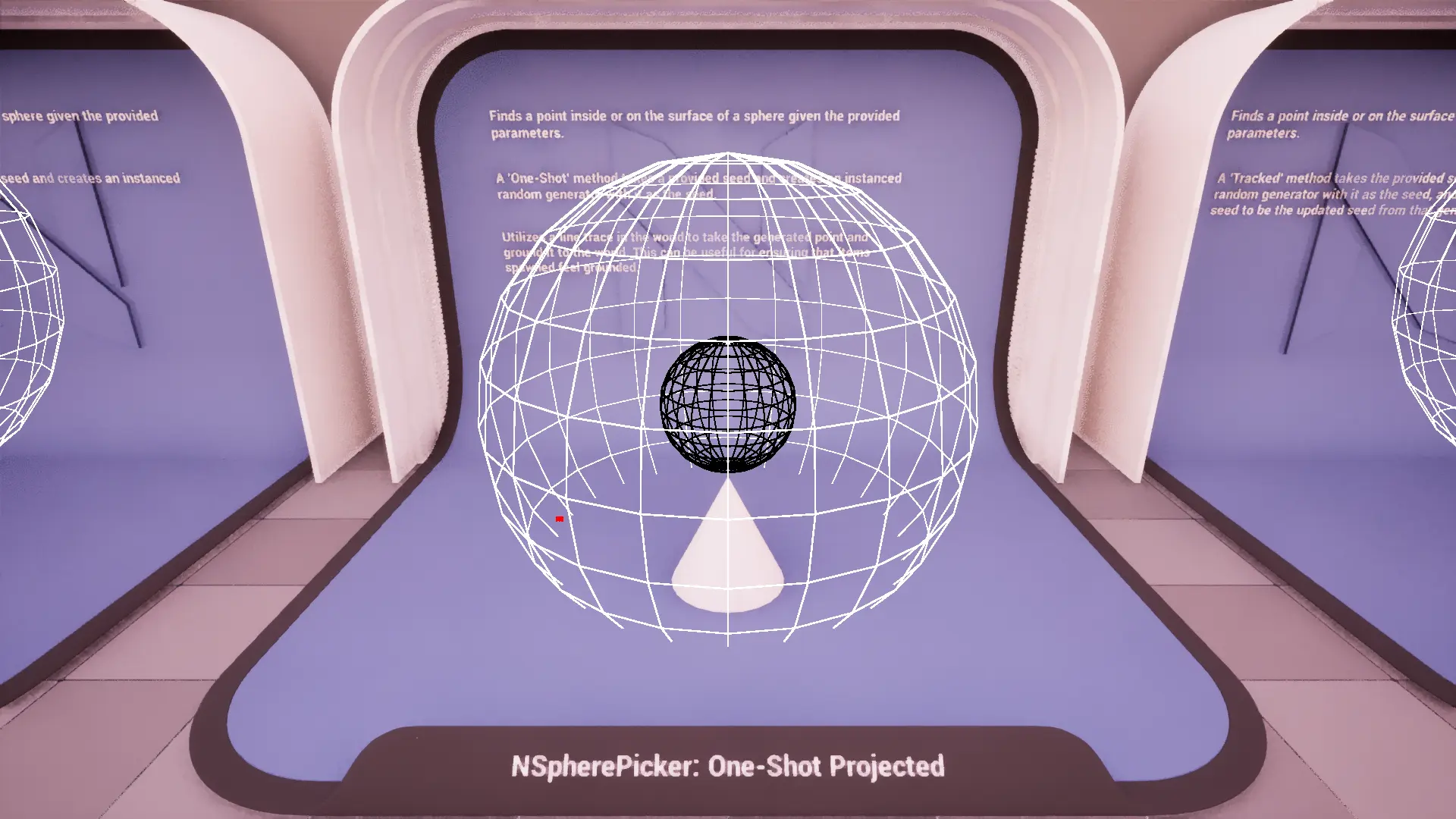

Random One-Shot Point Projected (IO)

Generates a random point [i]nside or [o]n the surface of a sphere using a provided seed, then projects it onto a surface in the world.

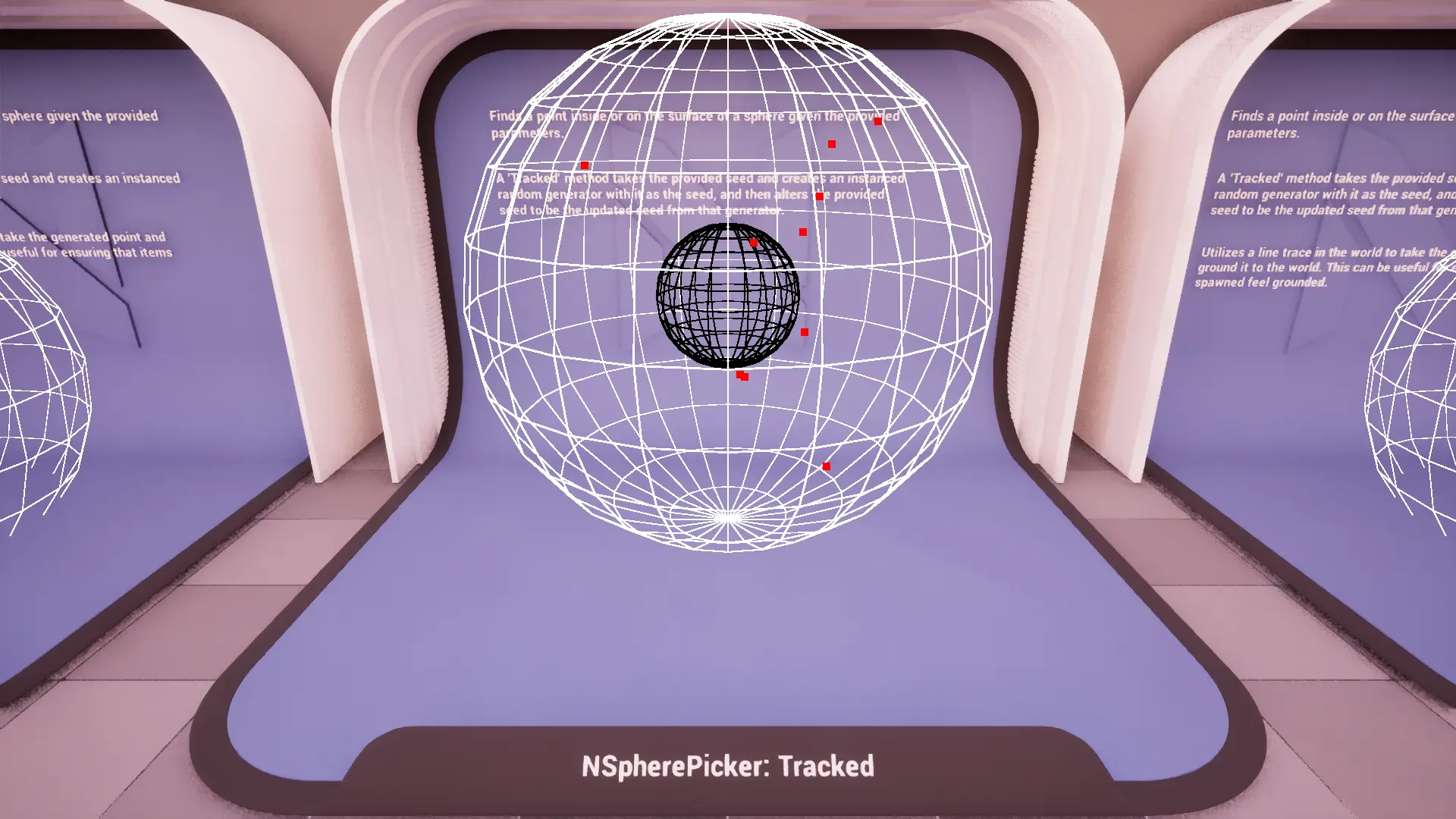

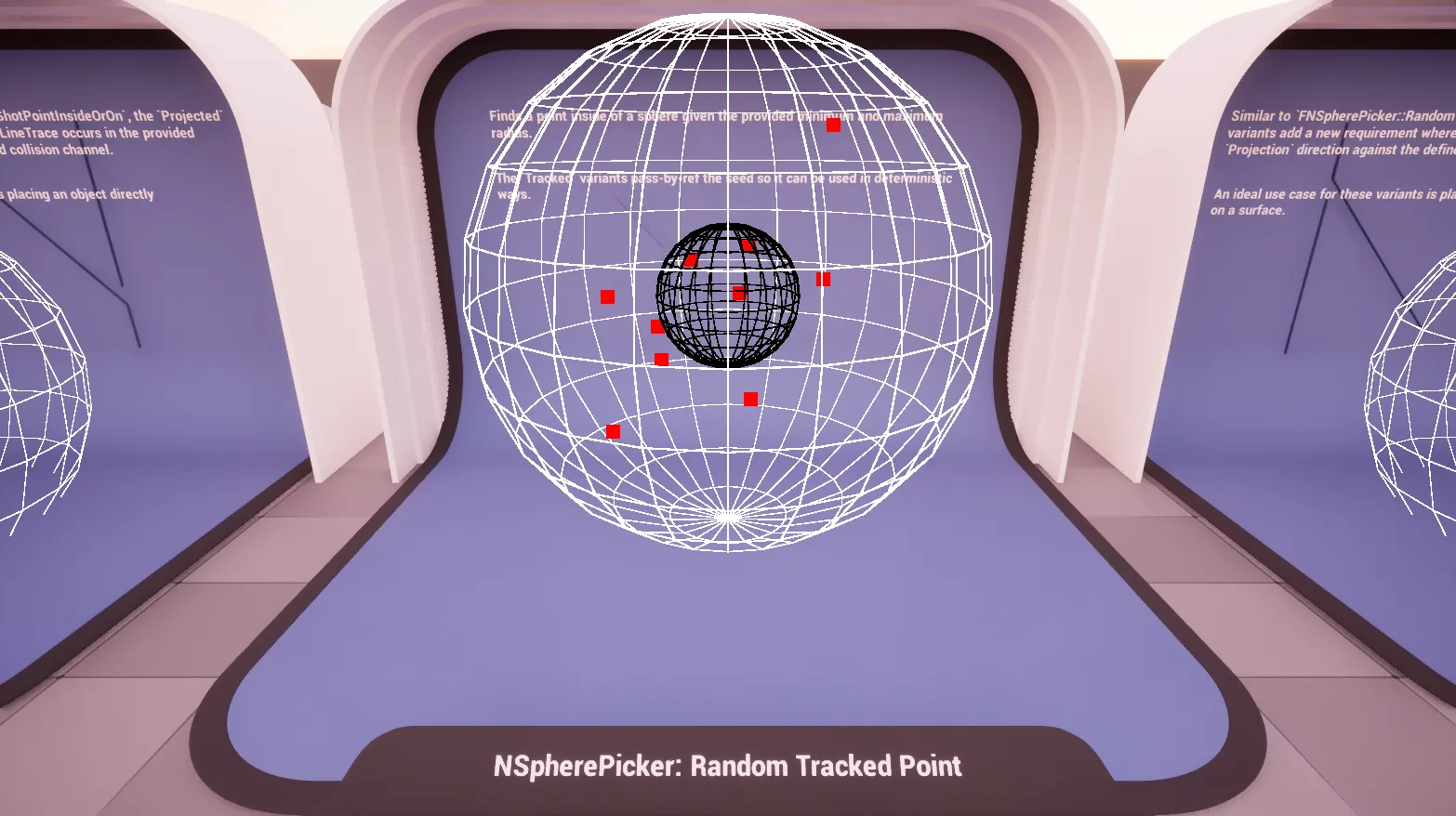

Random Tracked Point (IO)

Generates a random point [i]nside or [o]n the surface of a sphere while tracking the random seed state.

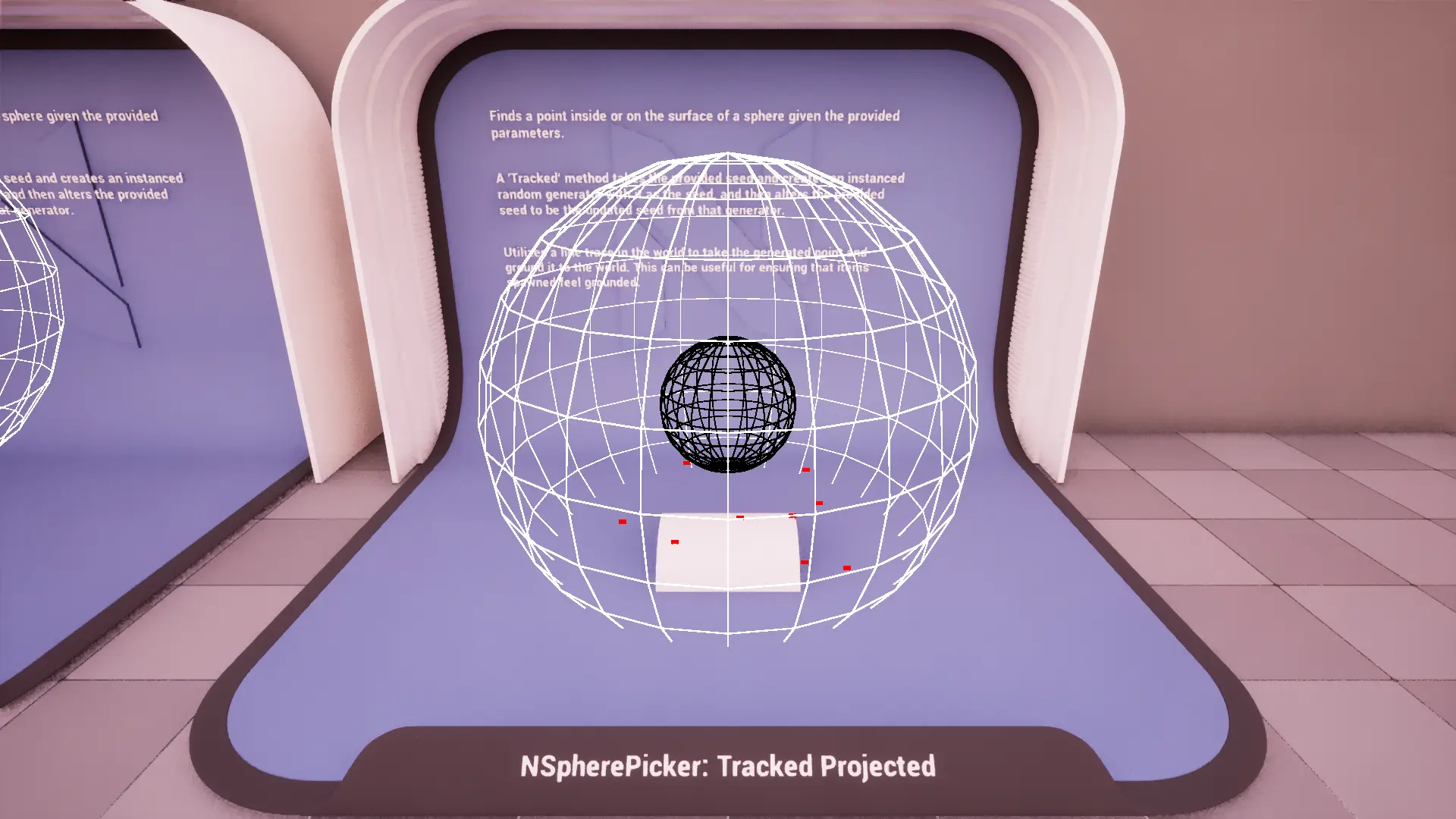

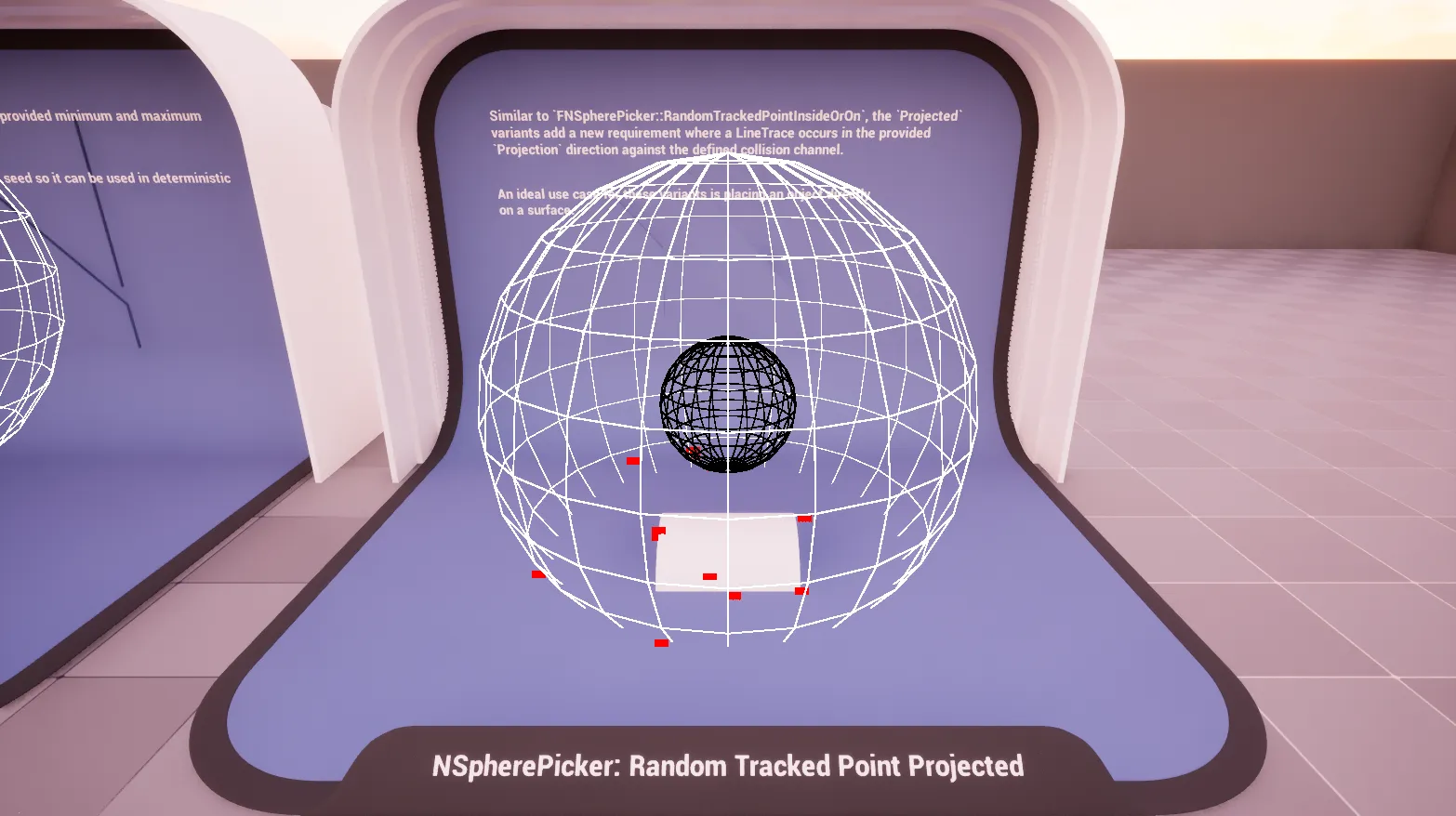

Random Tracked Point Projected (IO)

Generates a random point [i]nside or [o]n the surface of a sphere while tracking the random seed state, then projects it onto a surface in the world.

Parameters

Variant	Parameter	Type	Description	Default
Base	Origin	FVector&	The center world point of the sphere.
Base	MinimumRadius	float	The minimum radius of the sphere (inner bound).
Base	MaximumRadius	float	The maximum radius of the sphere (outer bound).
Simple	Radius	float	The radius of the sphere.
Projected	WorldContextObject	UObject*	Object that provides access to the world, usally auto-filled in Blueprint.	WorldContext
Projected	Projection	FVector	Direction and distance for the line trace.	FVector(0,0,-500.f)
Projected	CollisionChannel	ECollisionChannel	The collision channel to use for tracing.	ECC_WorldStatic
Tracked	Seed	int32&	The seed to be used when generating, and altered for determinism.
One-Shot	Seed	int32	The throw-away seed used when generating.
