Rectangle

Base:

UBlueprintFunctionLibrary

Type:

UNRectanglePickerLibrary / FNRectanglePicker

Header File:

NexusActorPools/Public/NRectanglePickerLibrary.h

Provides various functions for generating points the plane of a rectangle using different random generation strategies (deterministic, non-deterministic, seeded).

The UNRectanglePickerLibrary wraps the native FNRectanglePicker functionality in a Blueprint friendly manner. Should you be wanting to utilize a picker in native code it is best to directly reference FNRectanglePicker directly to avoid the abstraction layer as it has a similar API.

Methods

tip

There are Simple variants of all of these methods which removes the inner exclusion when not needed as a minor optimization.

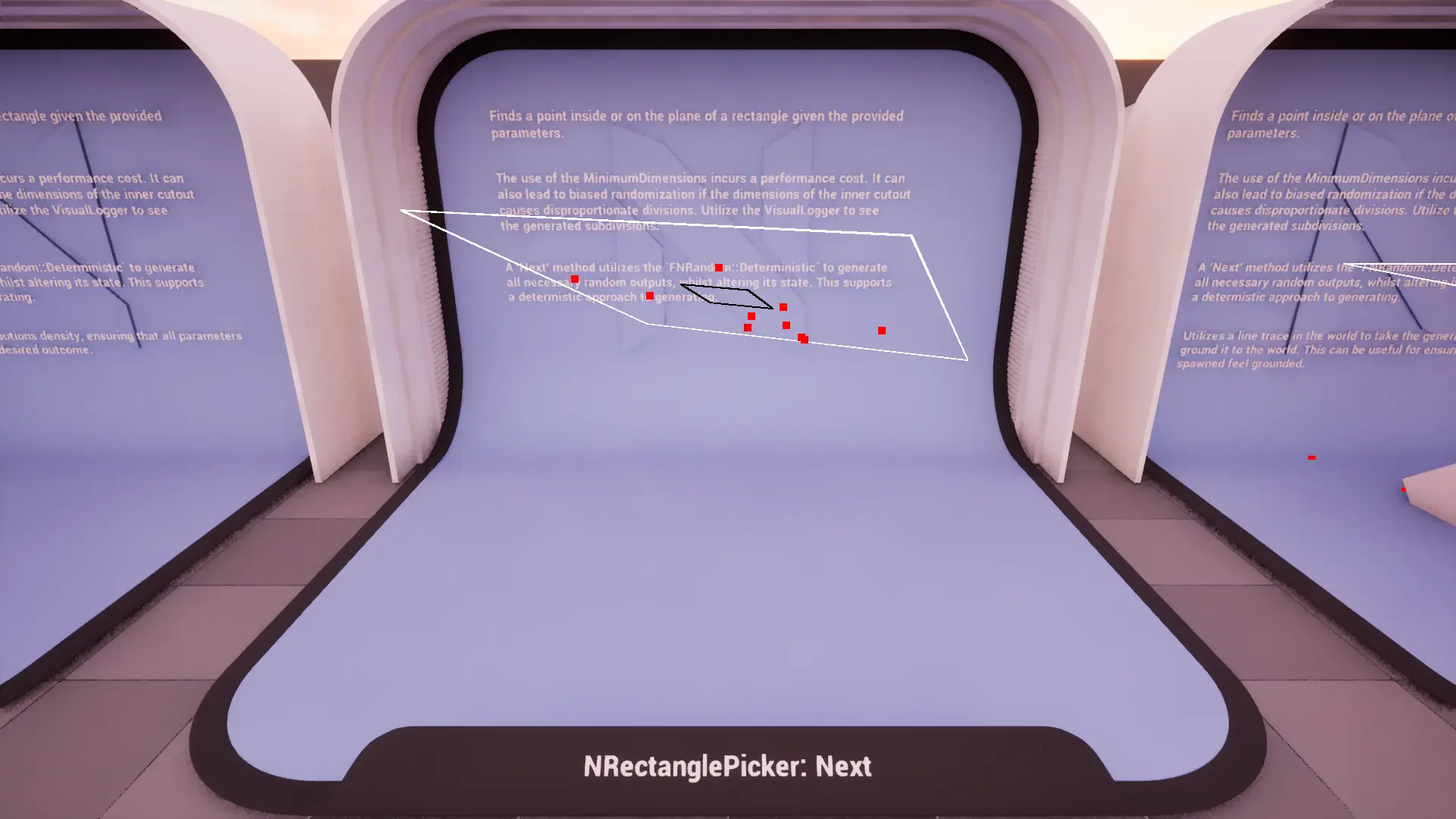

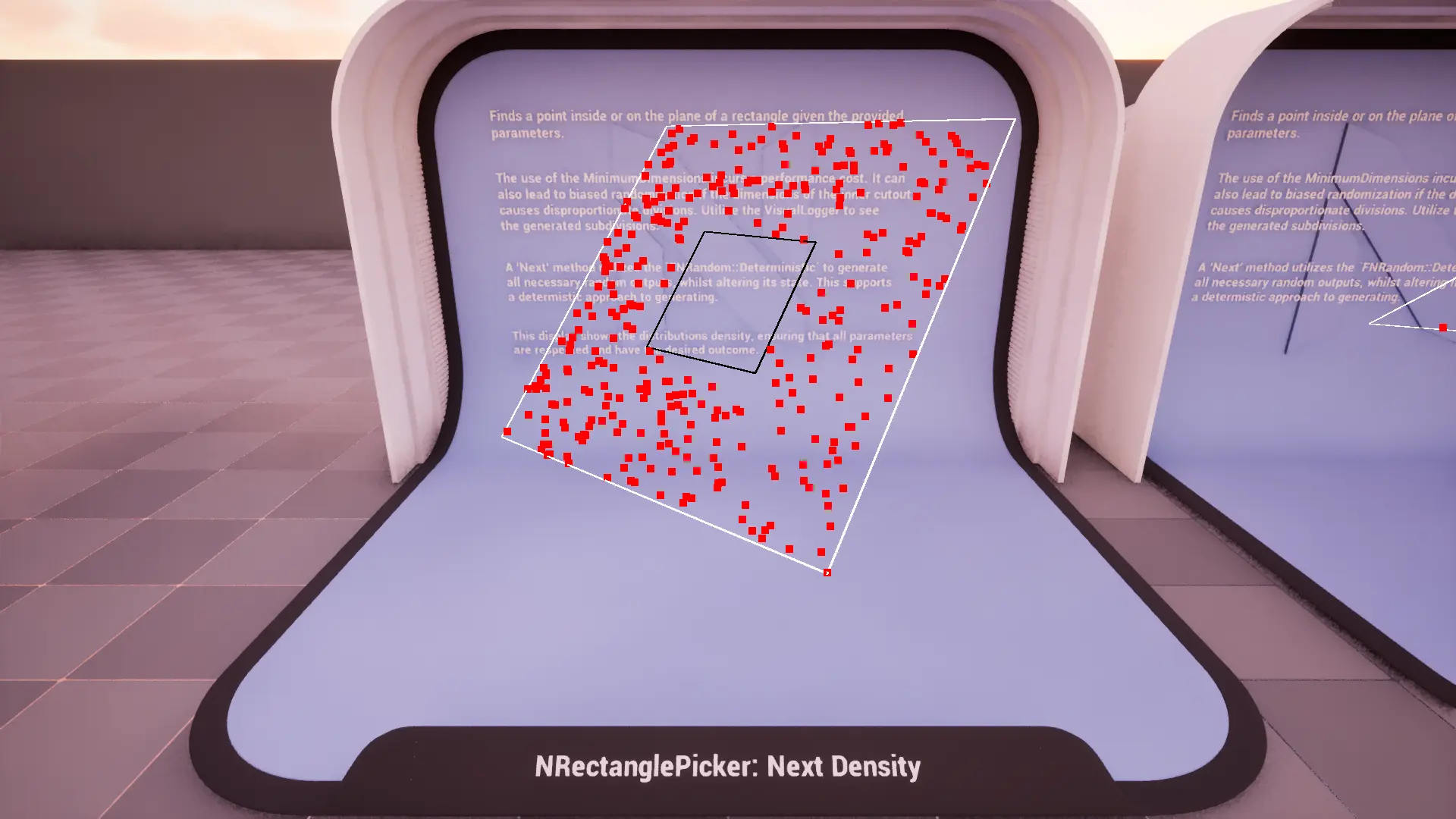

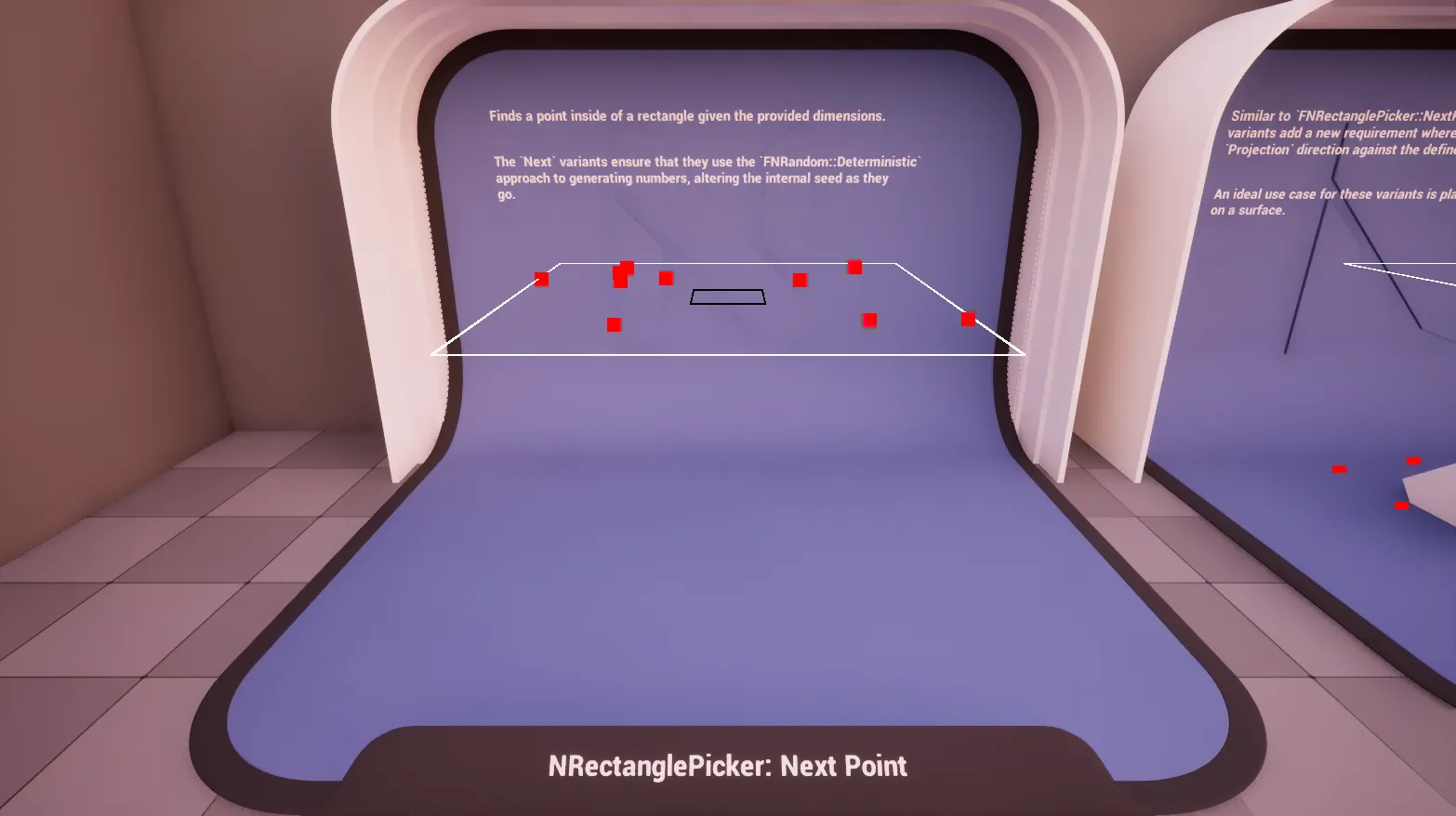

Next Point (IO)

Generates a deterministic point [i]nside or [o]n the boundary of a rectangle.

info

Uses FNRandom::Deterministic to ensure reproducible results.

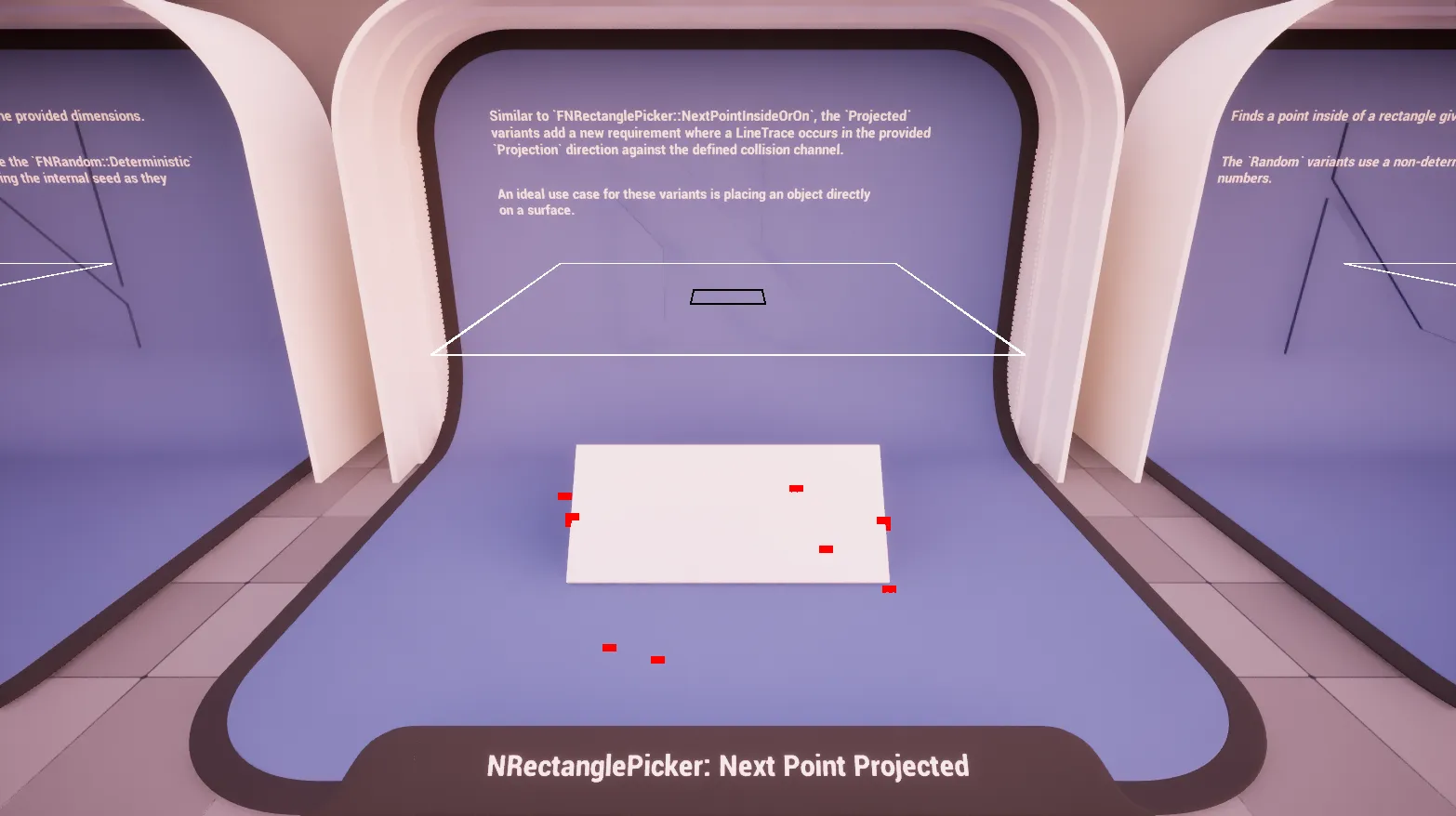

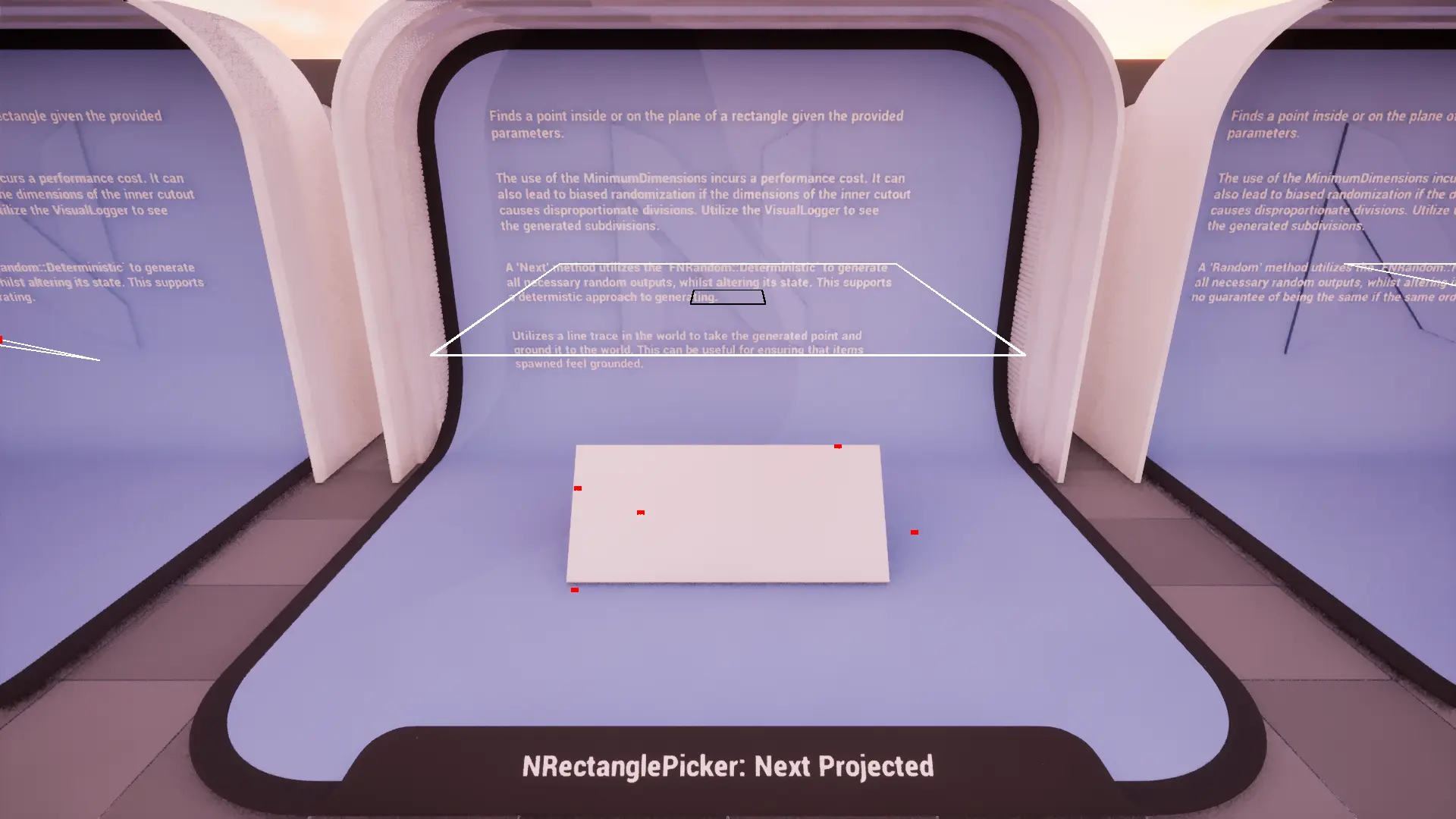

Next Point Projected (IO)

Generates a deterministic point [i]nside or [o]n the boundary of a rectangle, then projects it onto a surface in the world.

info

Uses FNRandom::Deterministic to ensure reproducible results.

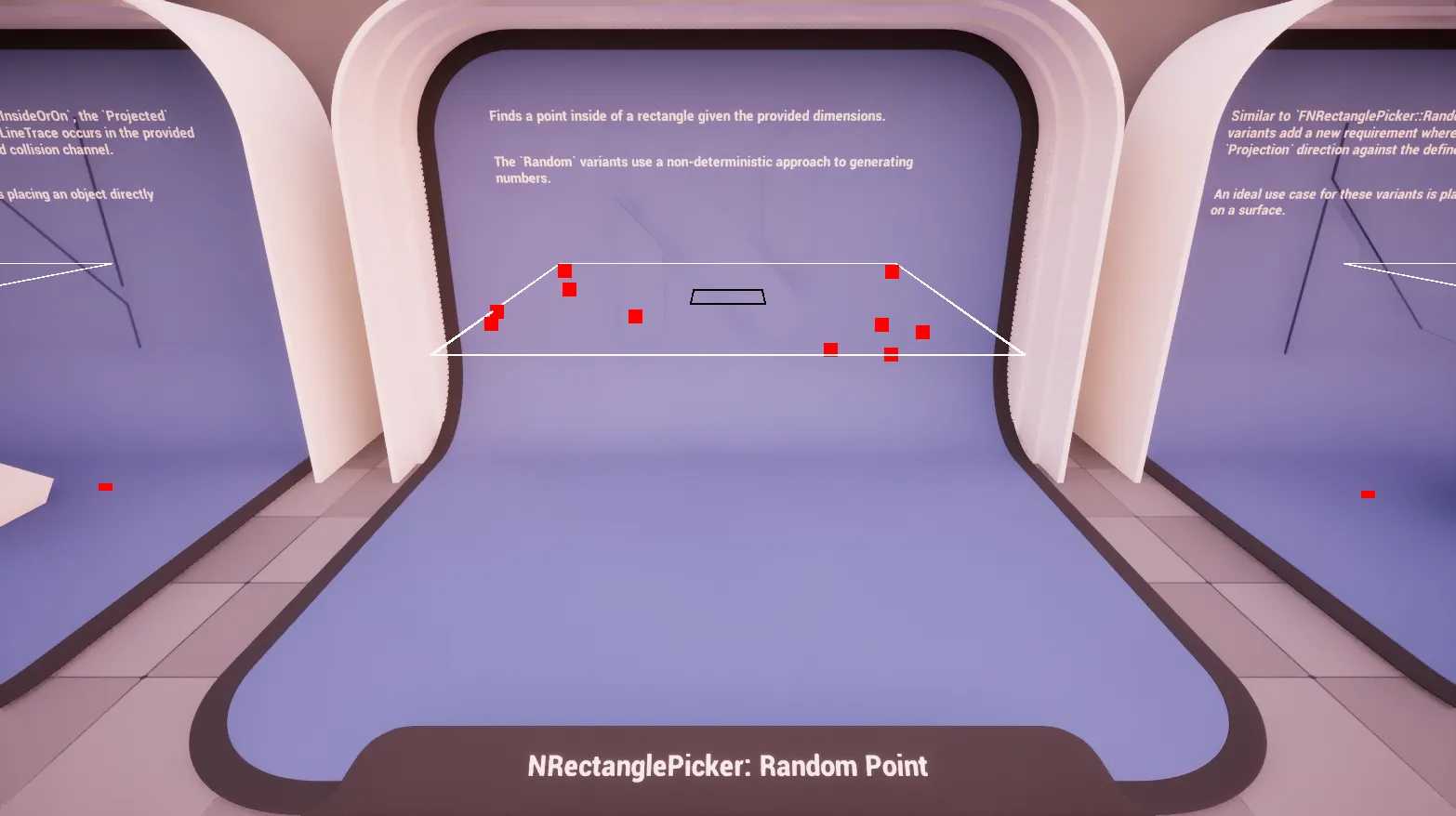

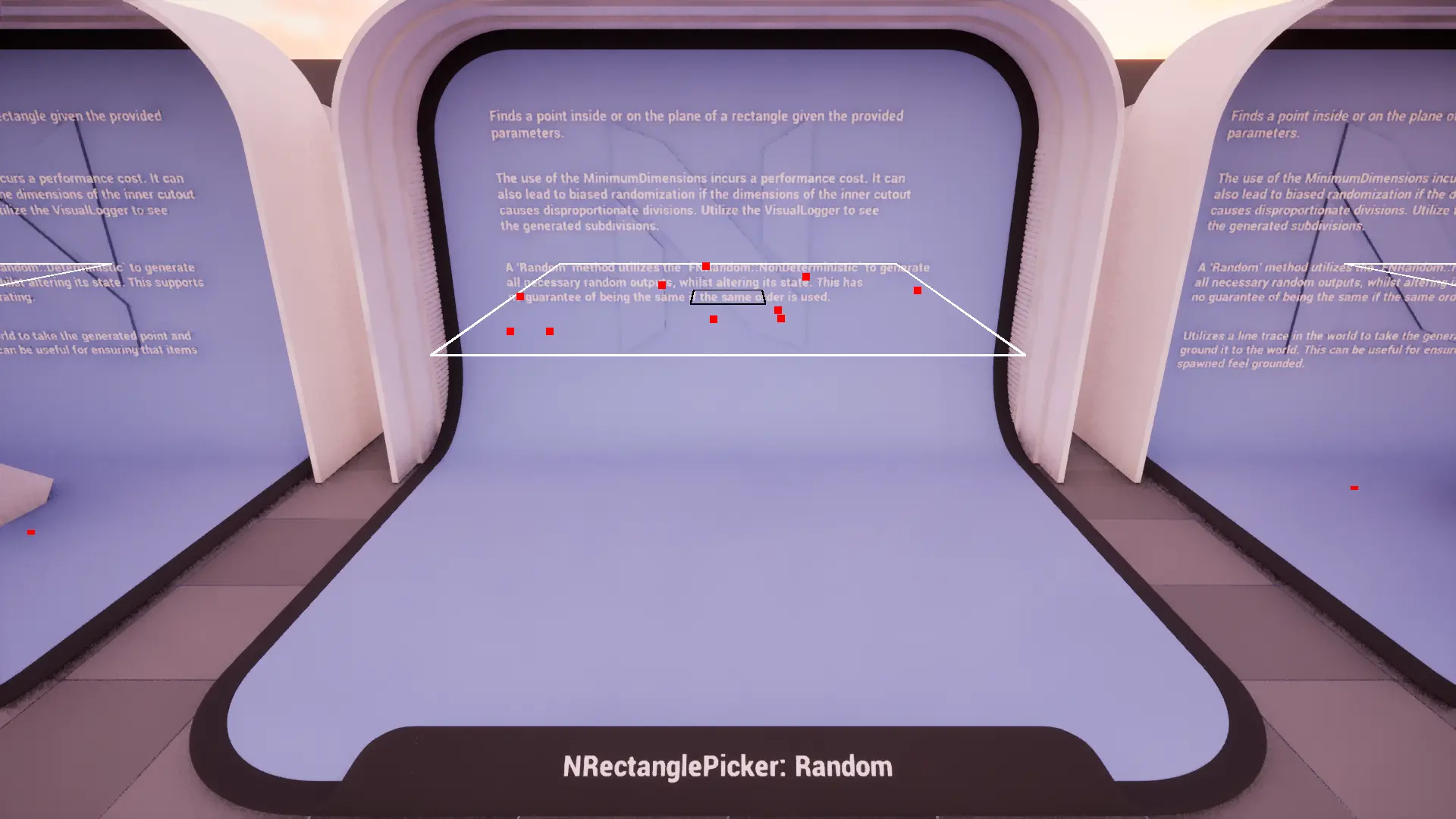

Random Point (IO)

Generates a random point [i]nside or [o]n the boundary of a rectangle.

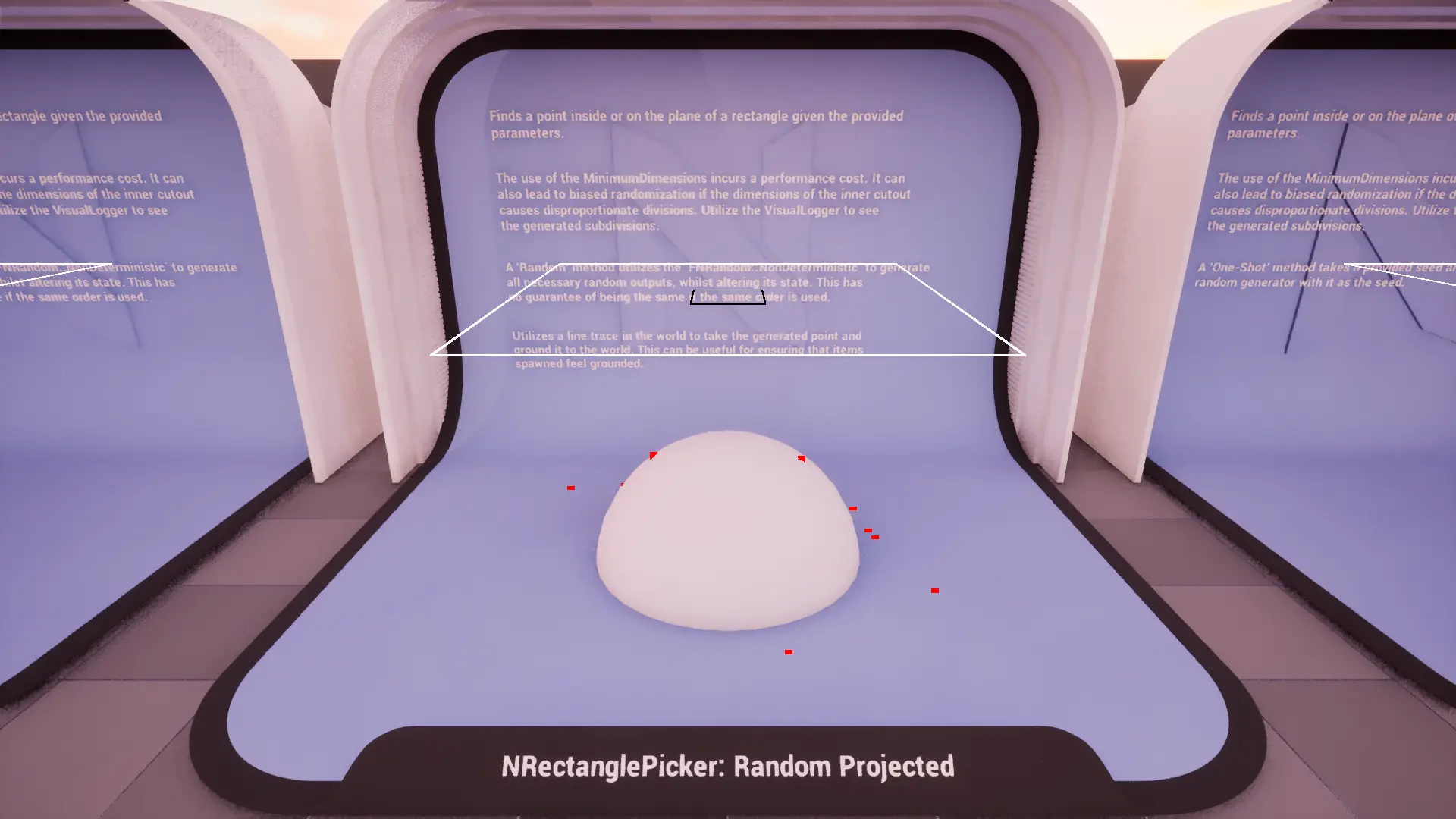

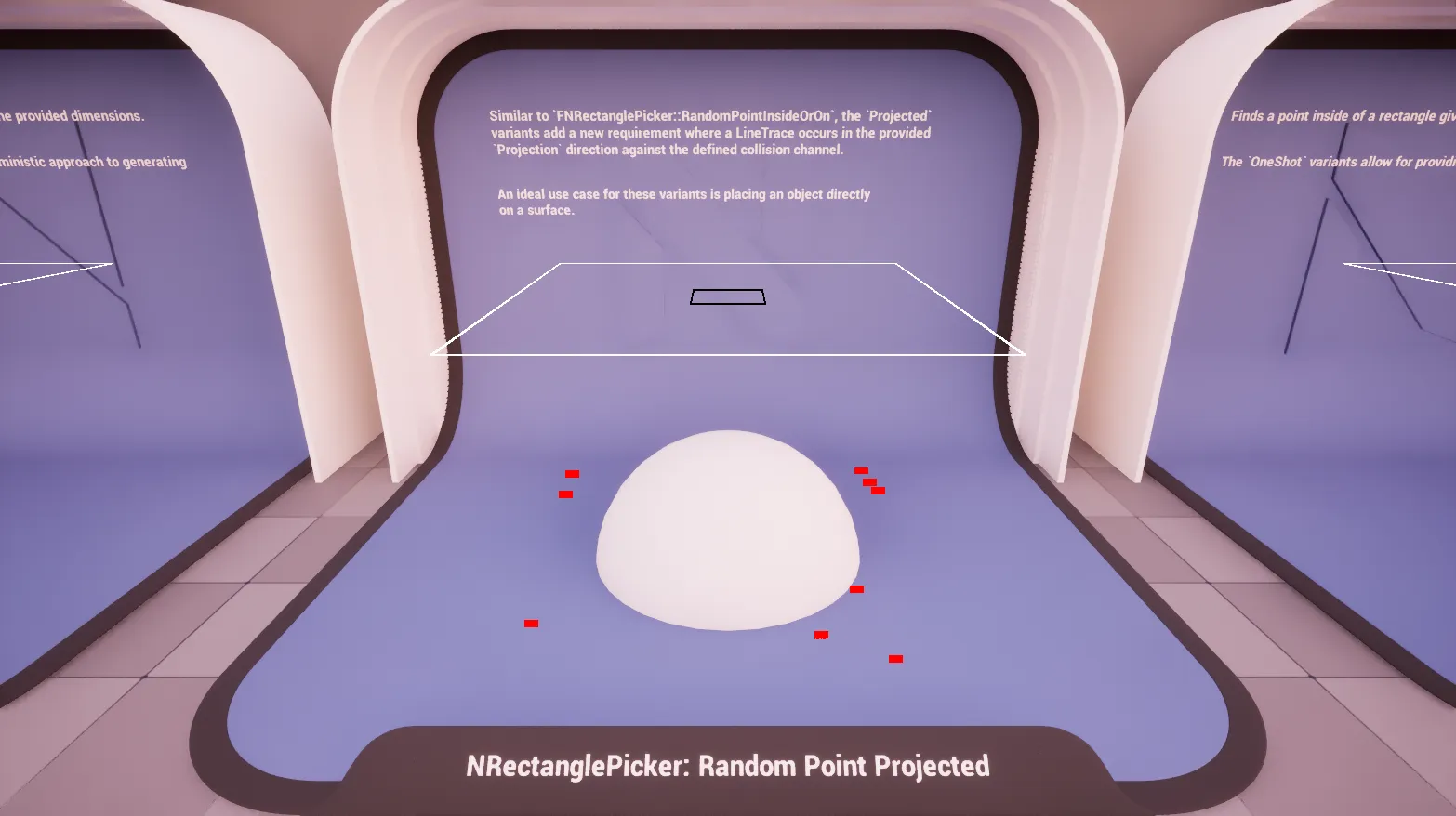

Random Point Projected (IO)

Generates a random point [i]nside or [o]n the boundary of a rectangle, then projects it onto a surface in the world.

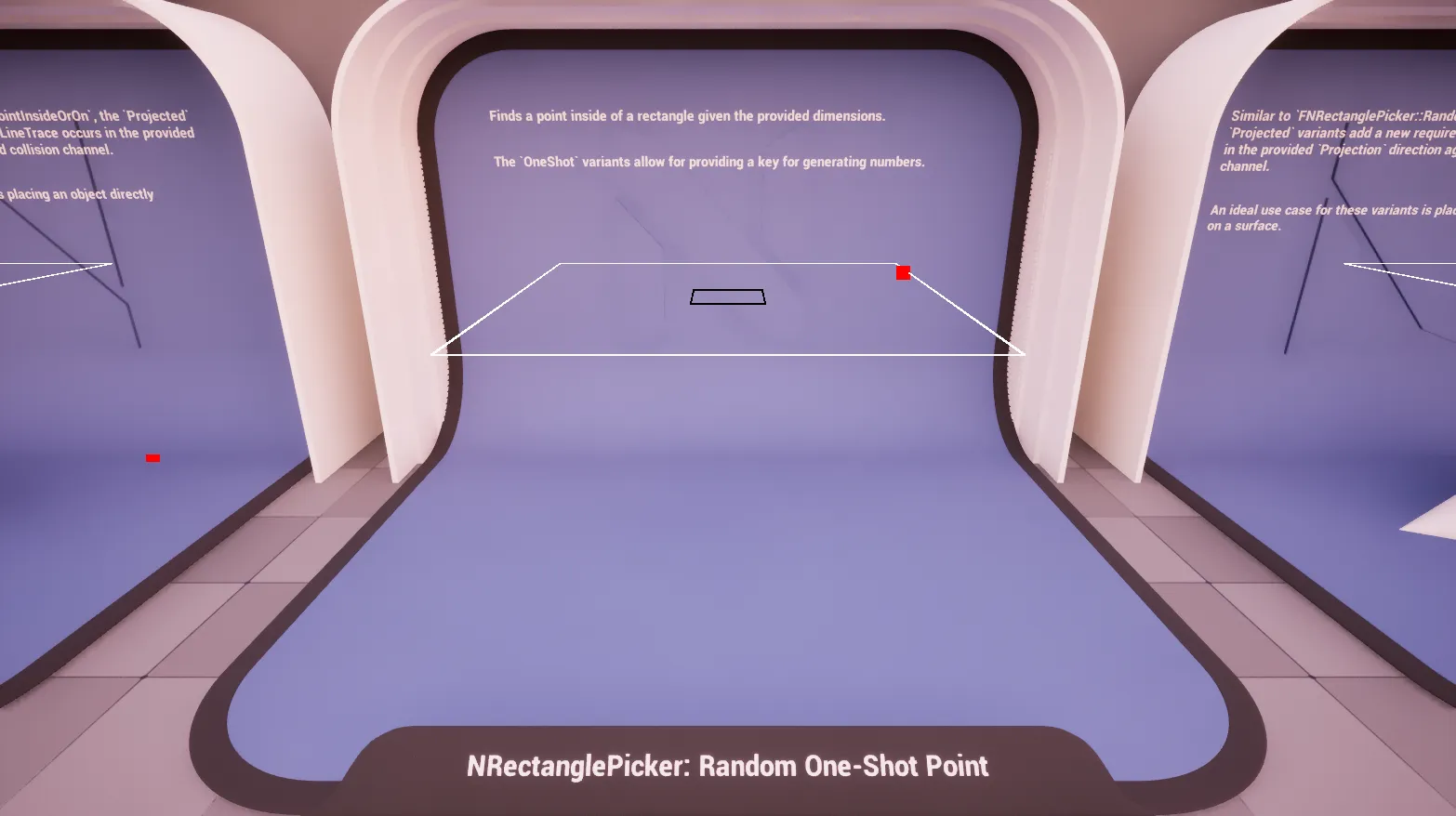

Random One-Shot Point (IO)

Generates a random point [i]nside or [o]n the boundary of a rectangle using a provided seed.

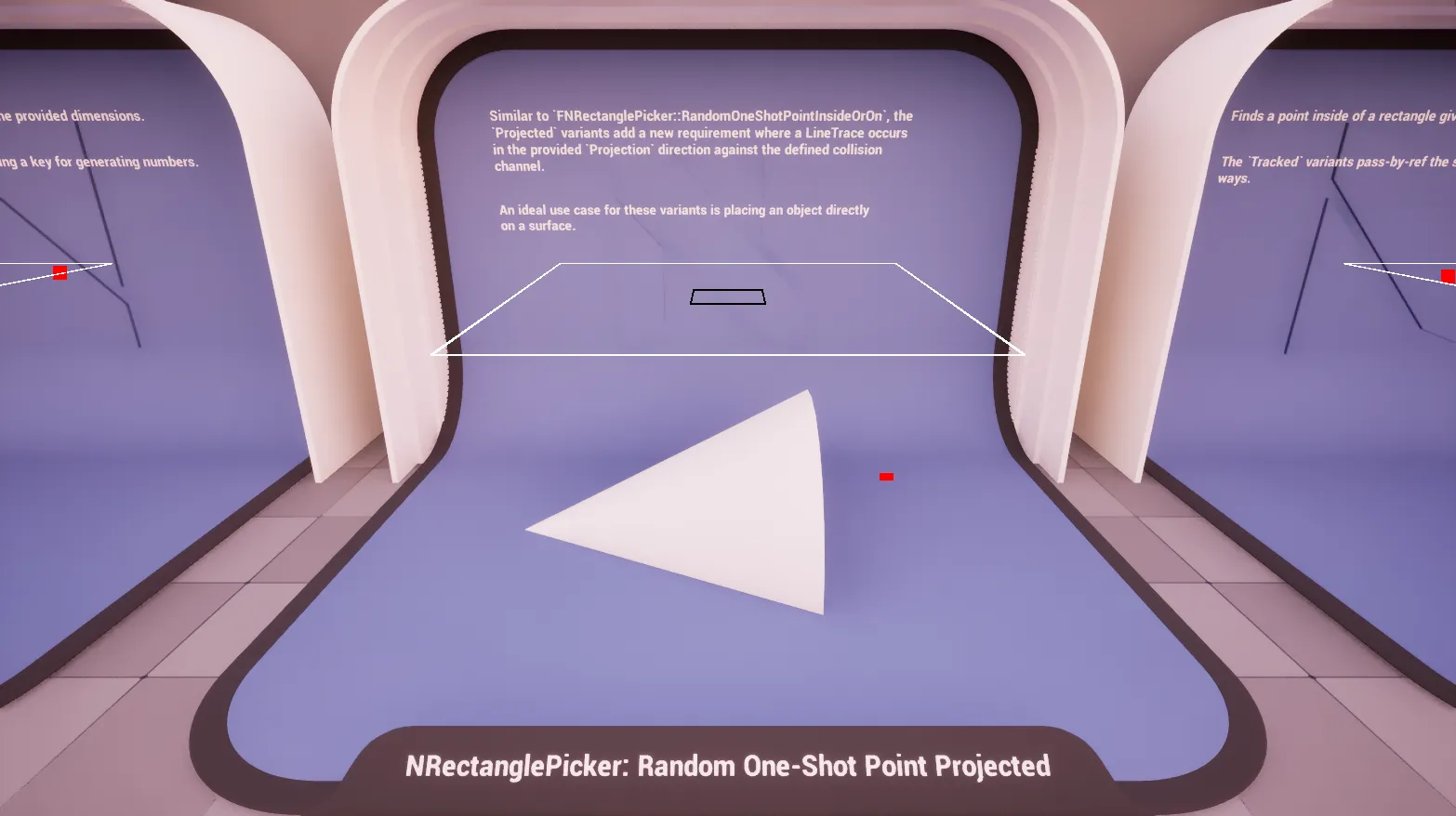

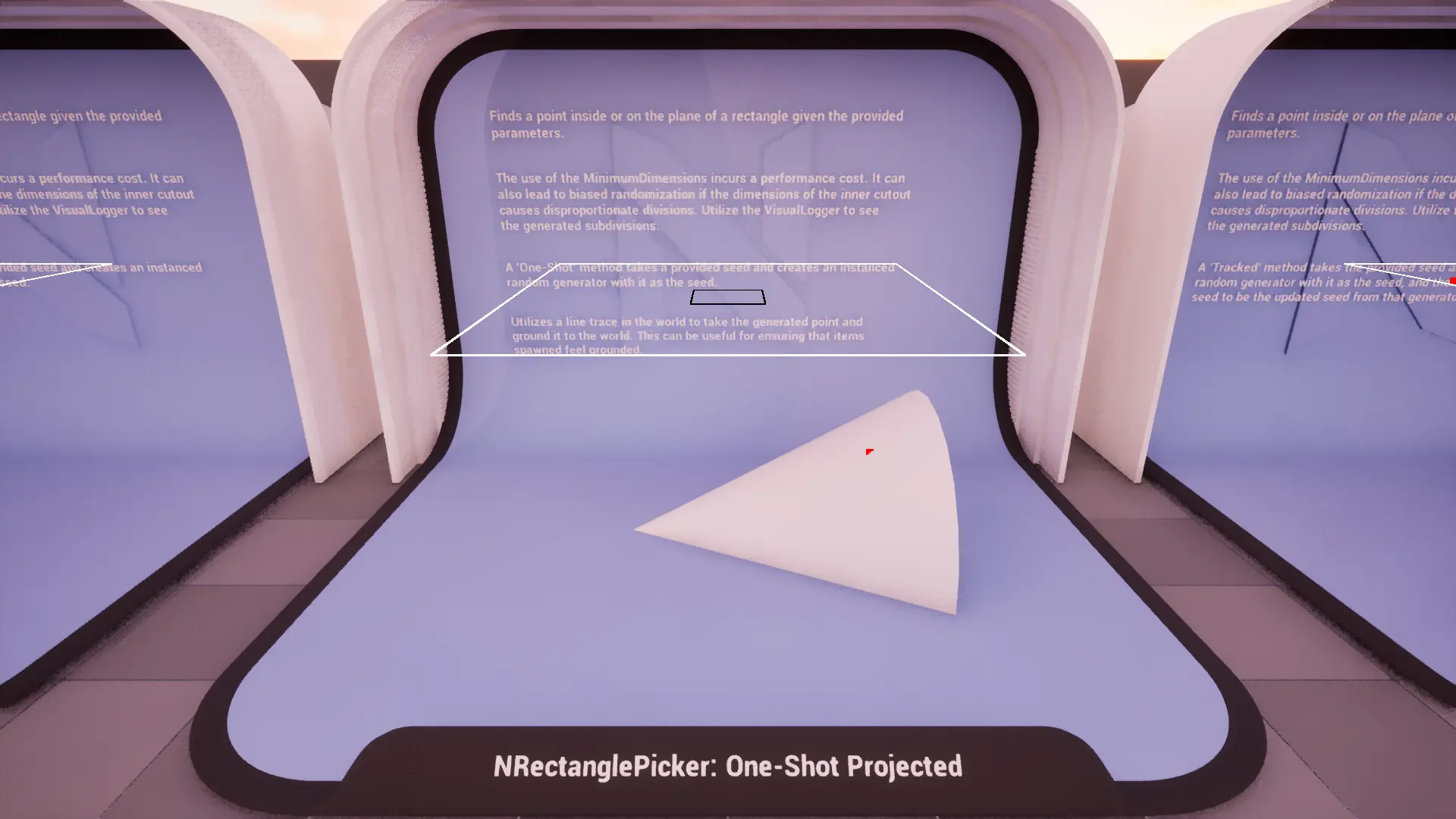

Random One-Shot Point Projected (IO)

Generates a random point [i]nside or [o]n the boundary of a rectangle using a provided seed, then projects it onto a surface in the world.

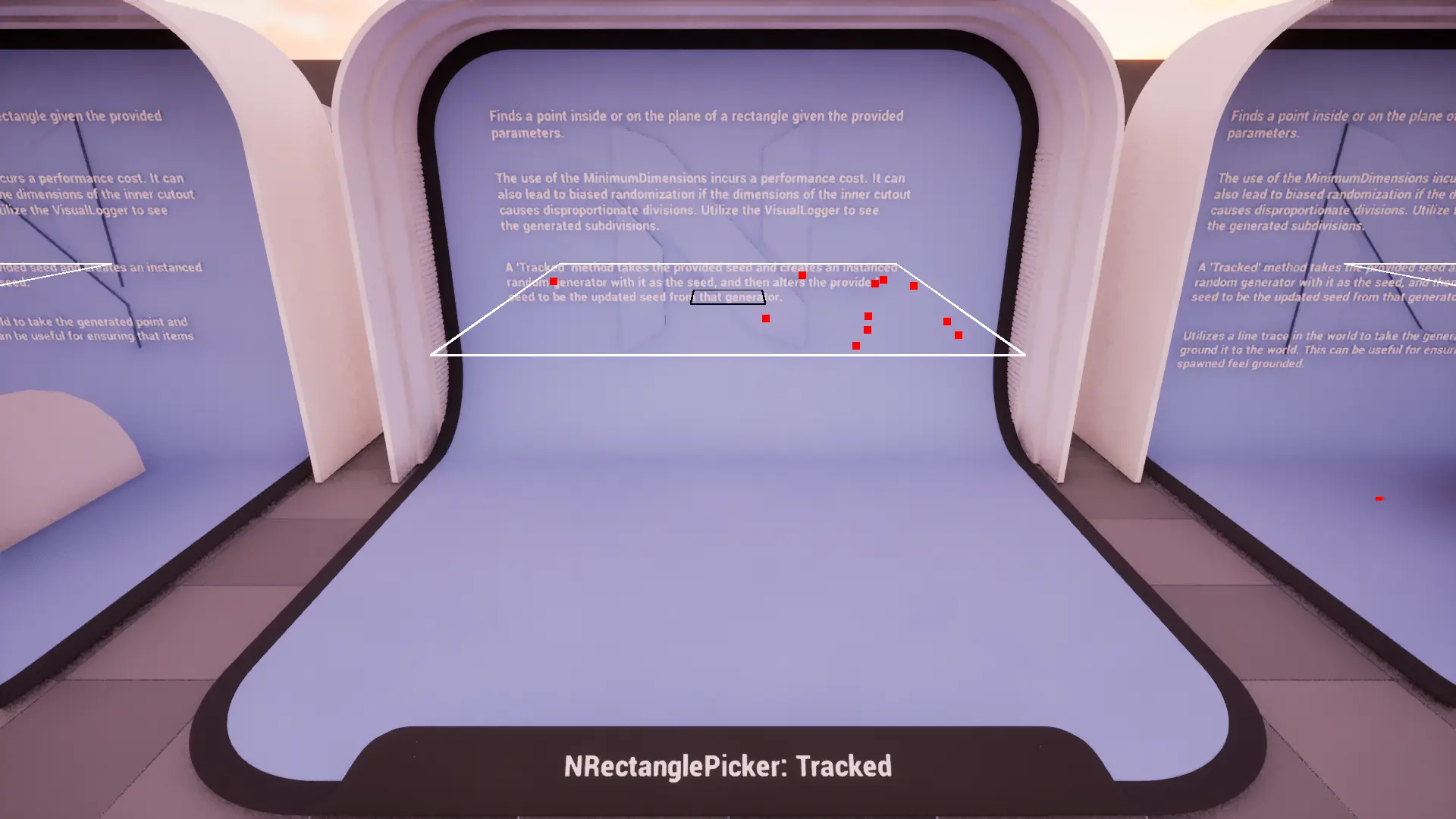

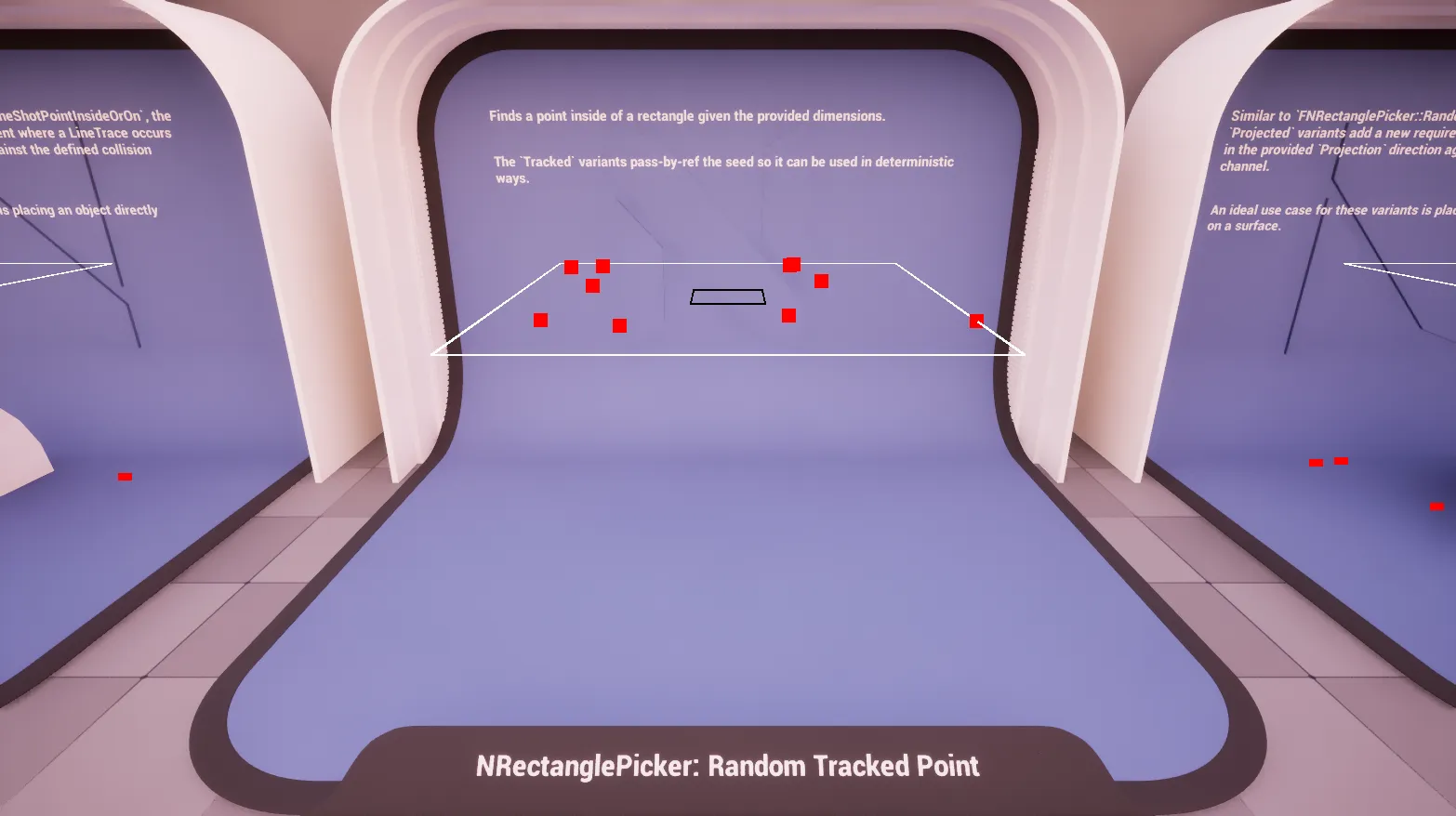

Random Tracked Point (IO)

Generates a random point [i]nside or [o]n the boundary of a rectangle using a tracked seed.

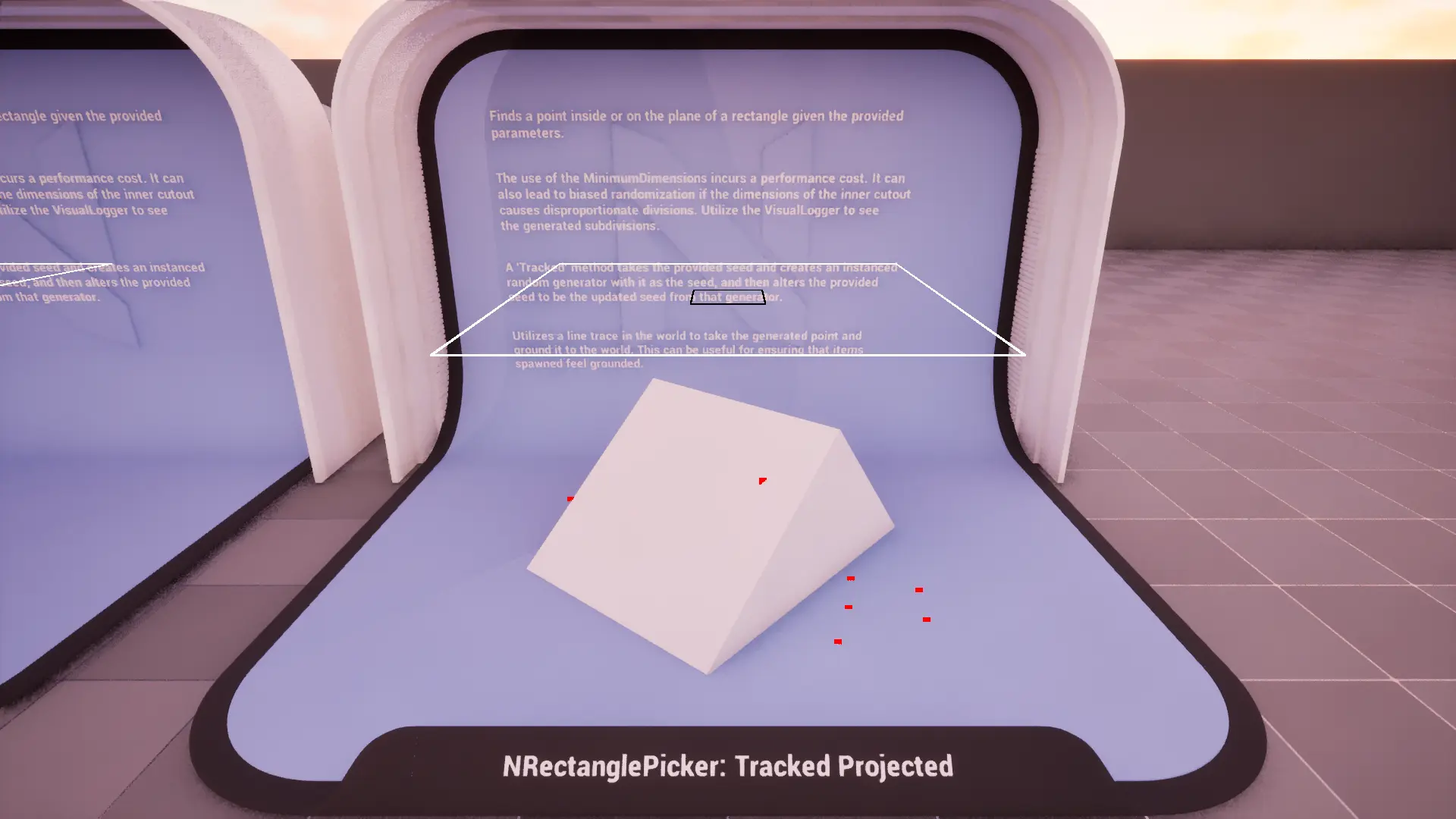

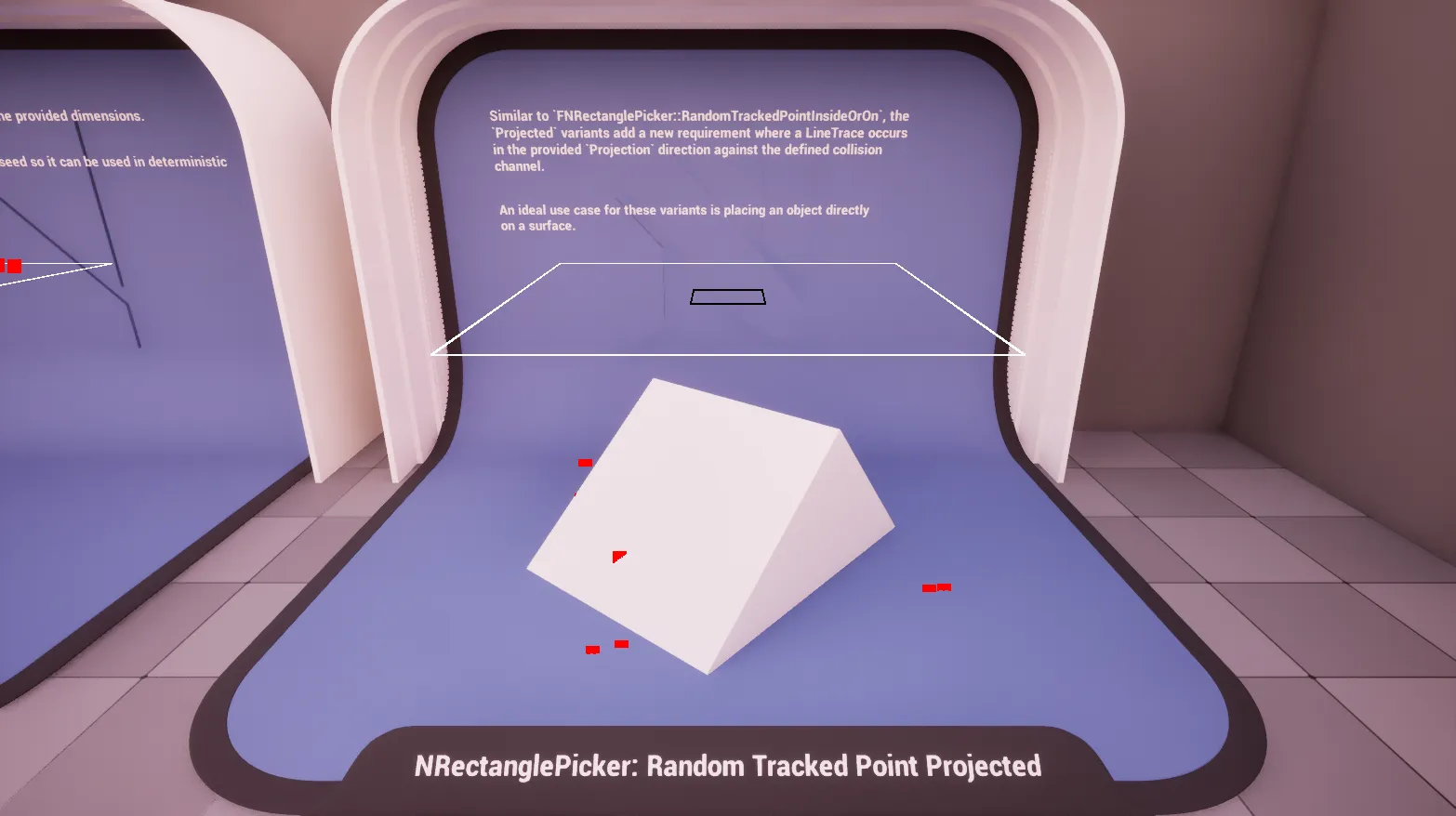

Random Tracked Point Projected (IO)

Generates a random point [i]nside or [o]n the boundary of a rectangle using simple dimensions and a tracked seed, then projects it onto a surface in the world.

Parameters

Variant	Parameter	Type	Description	Default
Base	Origin	FVector&	The center world point of the rectangle.
Base	MinimumDimensions	FVector2D	The minimum dimensions of the rectangle (X = width, Y = height).
Base	MaximumDimensions	FVector2D	The maximum dimensions of the rectangle (X = width, Y = height).
Simple	Dimensions	FVector2D	The dimensions of the rectangle.
Projected	WorldContextObject	UObject*	Object that provides access to the world, usally auto-filled in Blueprint.	WorldContext
Projected	Projection	FVector	Direction and distance for the line trace.	FVector(0,0,-500.f)
Projected	CollisionChannel	ECollisionChannel	The collision channel to use for tracing.	ECC_WorldStatic
Tracked	Seed	int32&	The seed to be used when generating, and altered for determinism.
One-Shot	Seed	int32	The throw-away seed used when generating.
