Box

Base:

UBlueprintFunctionLibrary

Type:

UNBoxPickerLibrary / FNBoxPicker

Header File:

NexusActorPools/Public/NBoxPickerLibrary.h

Provides various functions for generating points inside or on the surface of the FBox using different random generation strategies (deterministic, non-deterministic, seeded).

The UNBoxPickerLibrary wraps the native FNBoxPicker functionality in a Blueprint friendly manner. Should you be wanting to utilize a picker in native code it is best to directly reference FNBoxPicker directly to avoid the abstraction layer as it has a similar API.

Methods

tip

There are Simple variants of all of these methods which removes the inner exclusion when not needed as a minor optimization.

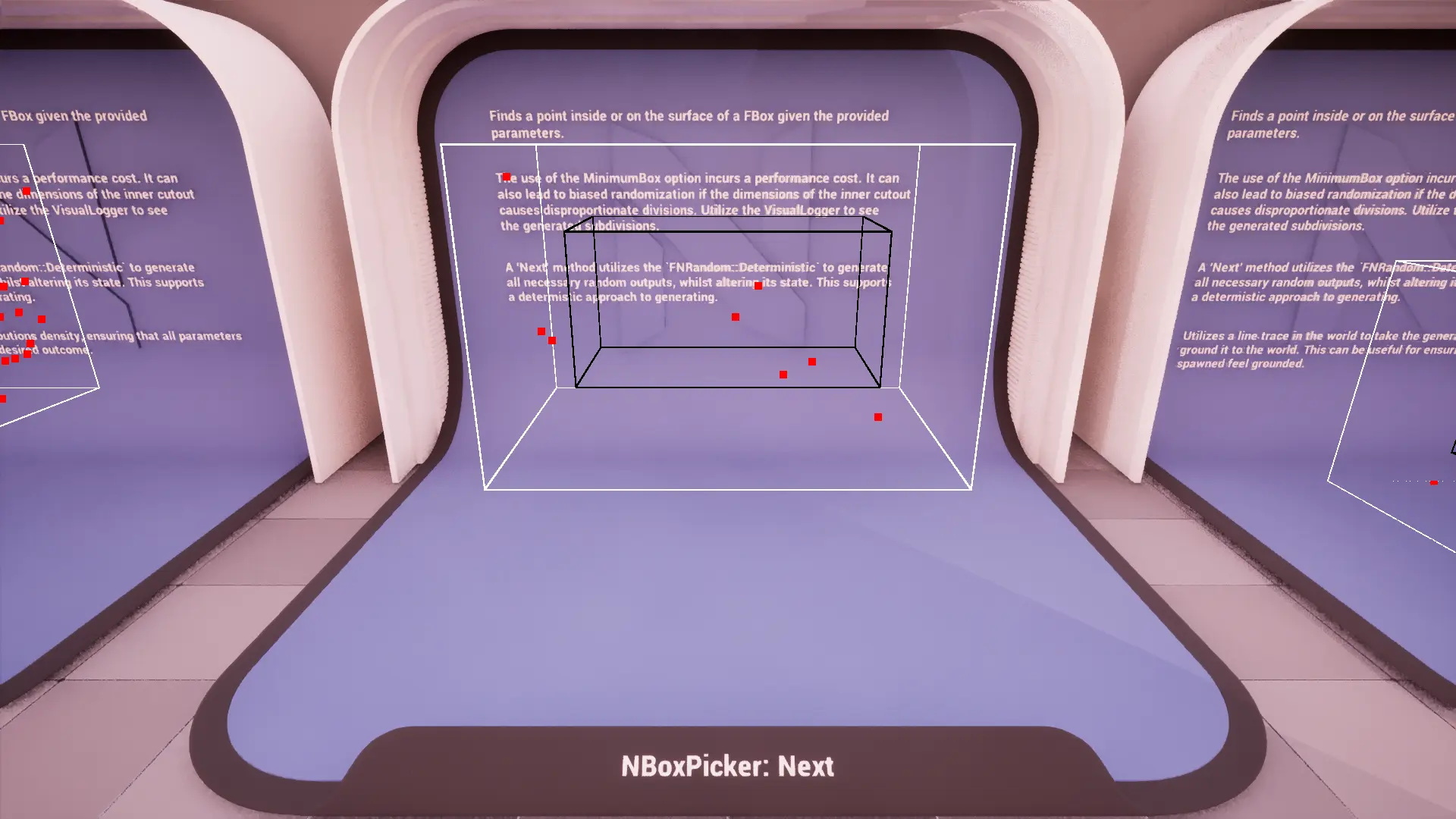

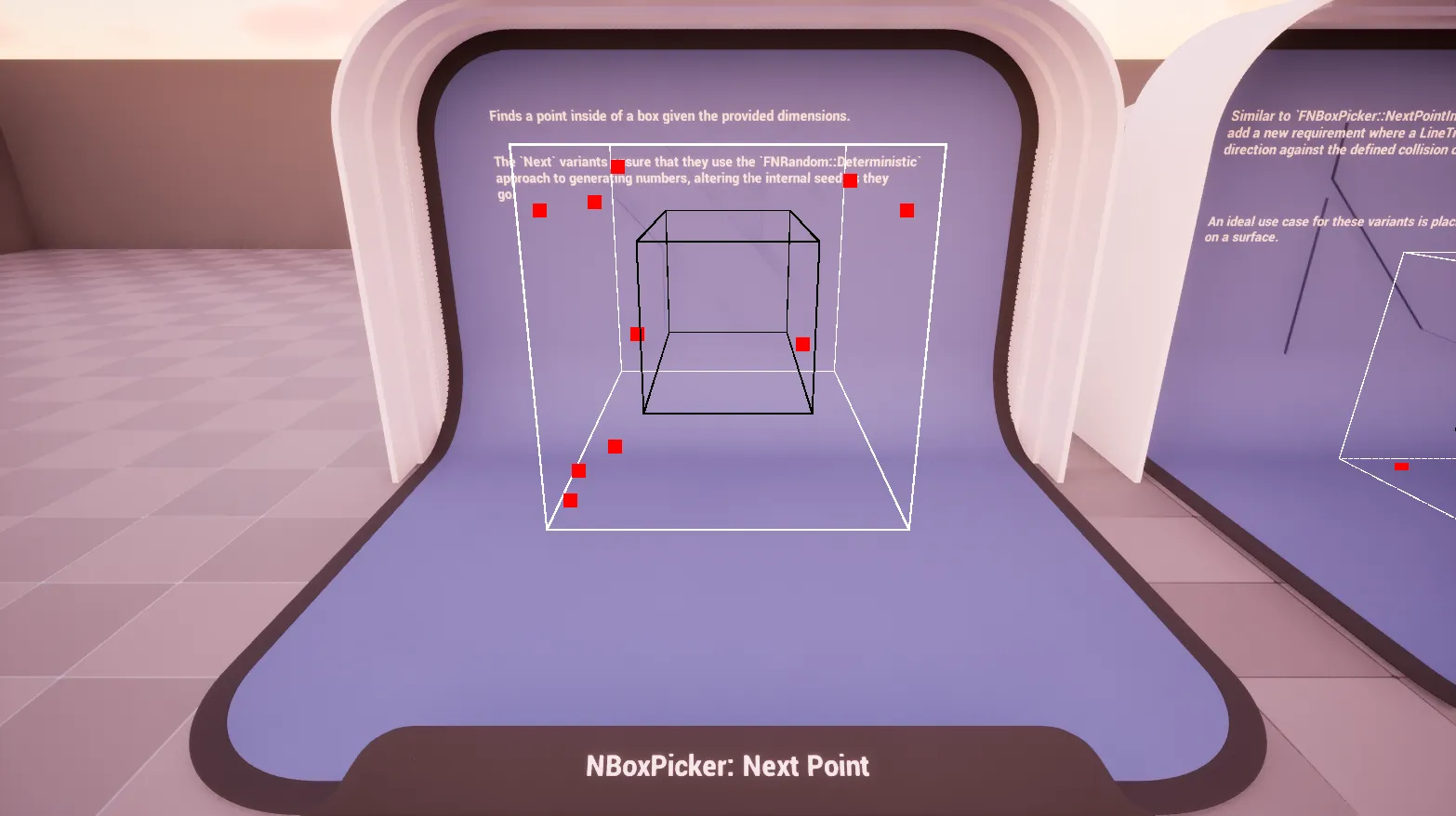

Next Point (IO)

Gets the next deterministic point [i]nside or [o]n the FBox.

info

Uses FNRandom::Deterministic to ensure reproducible results.

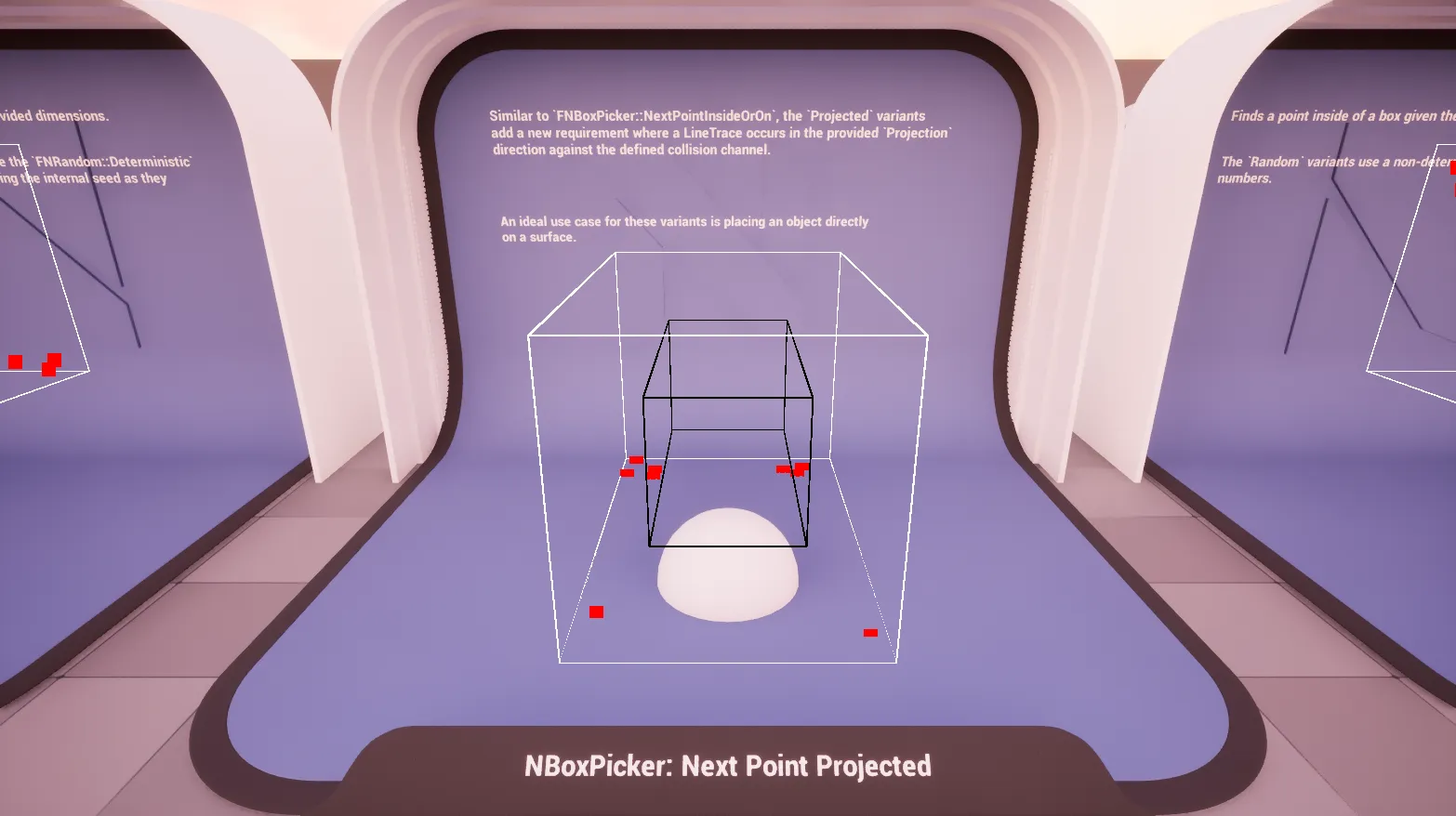

Next Point Projected (IO)

Gets the next deterministic point [i]nside or [o]n the FBox and projects it in the given direction.

info

Uses FNRandom::Deterministic to ensure reproducible results.

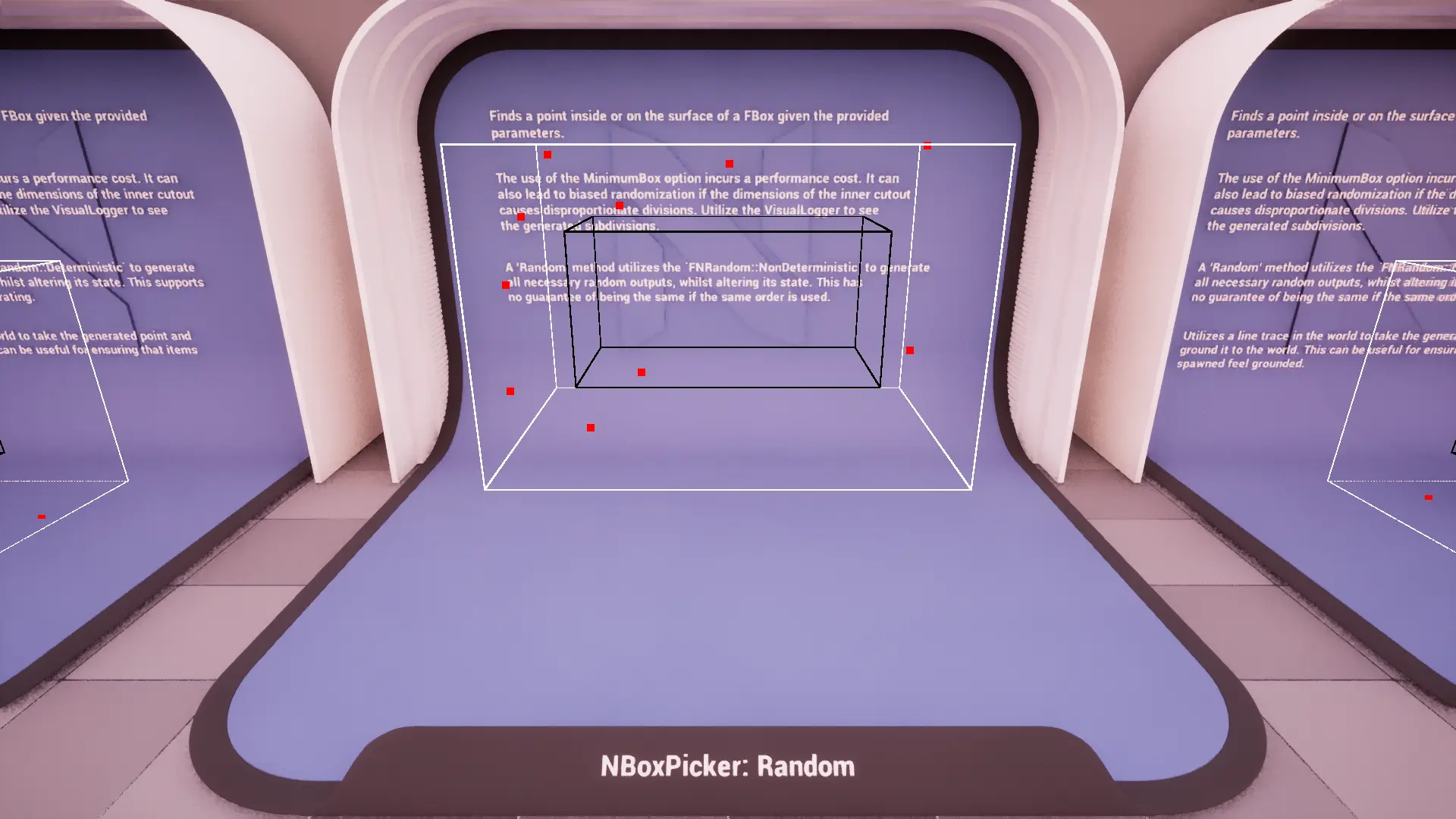

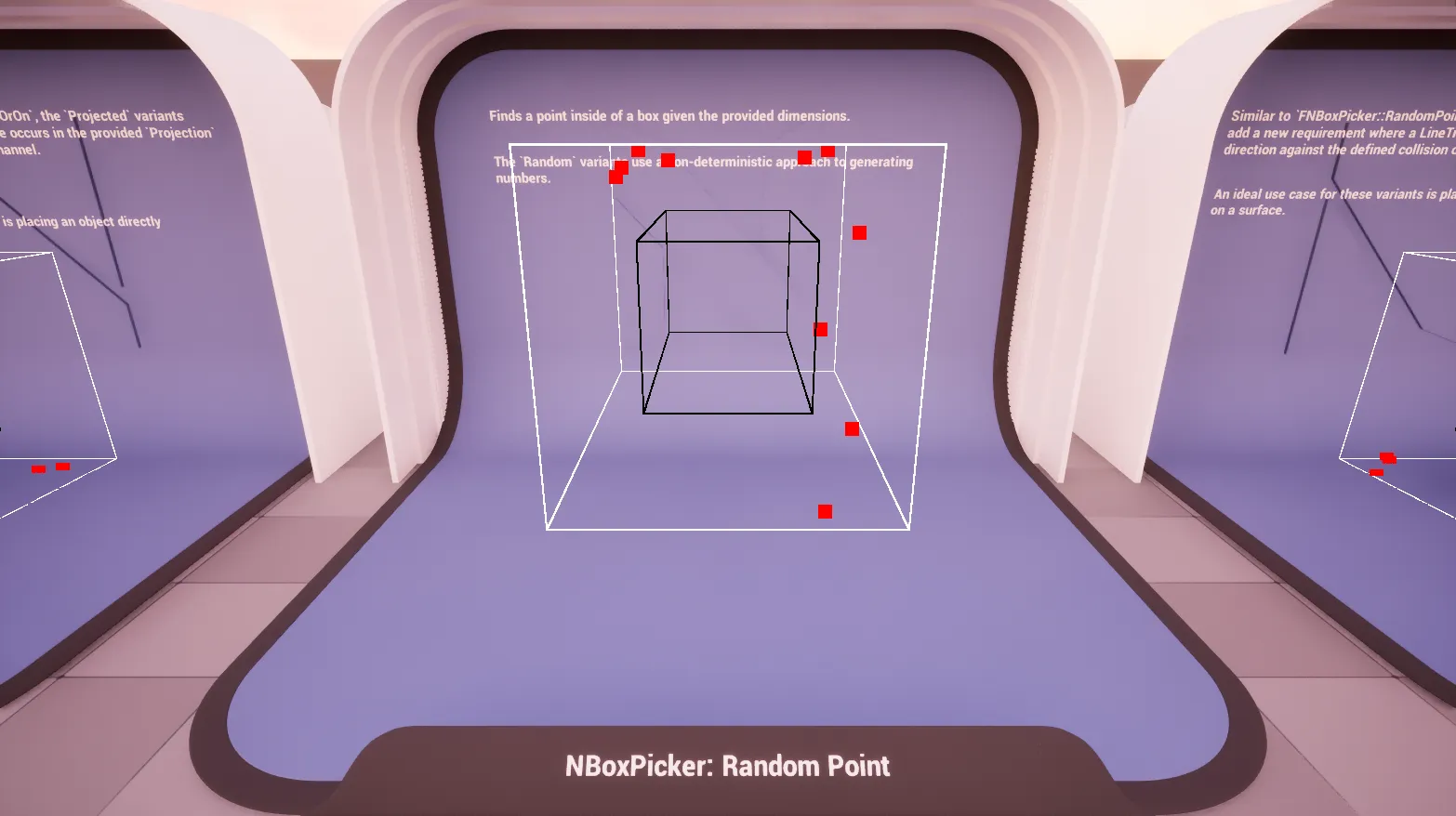

Random Point (IO)

Gets a random point [i]nside or [o]n the FBox.

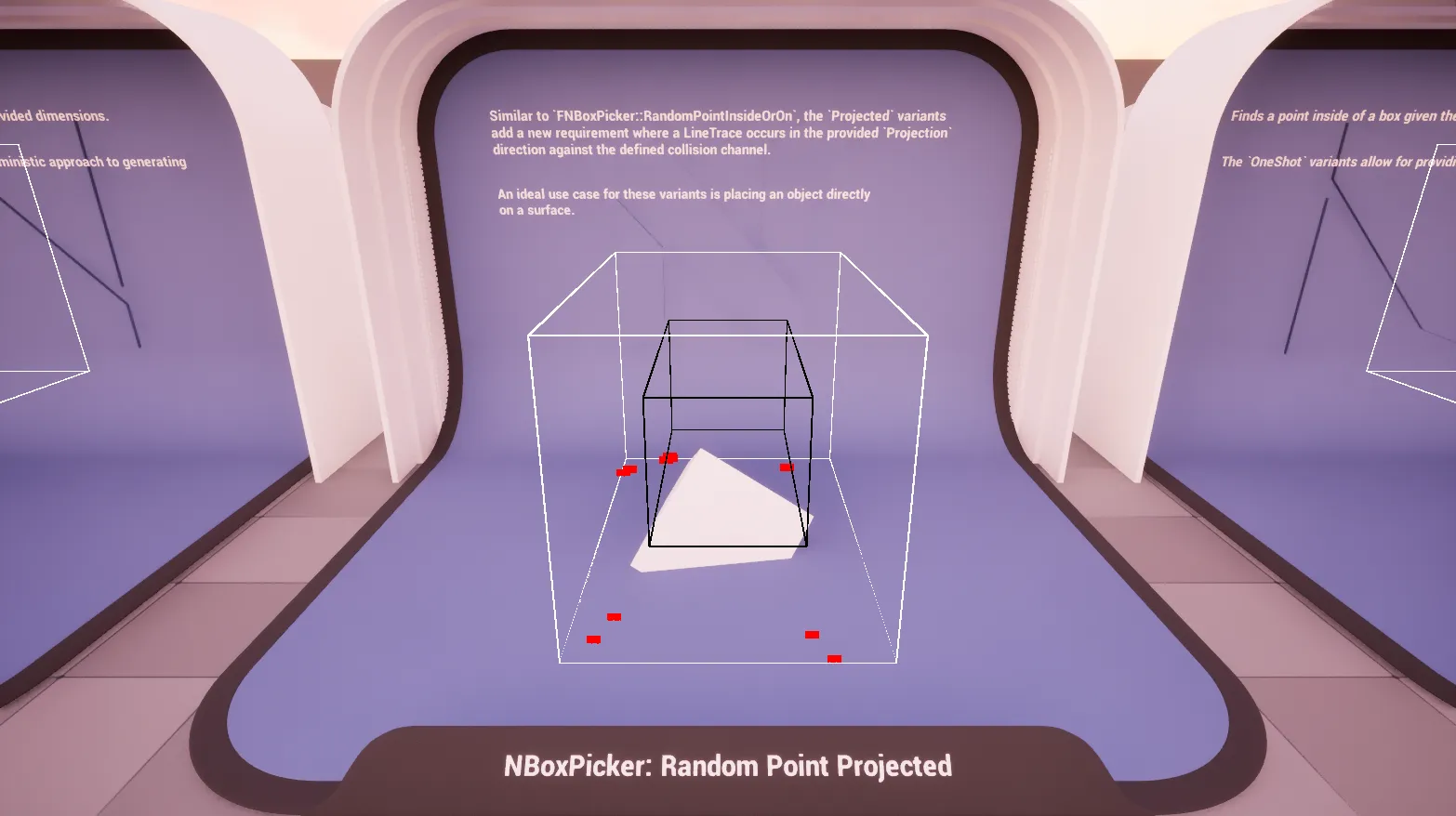

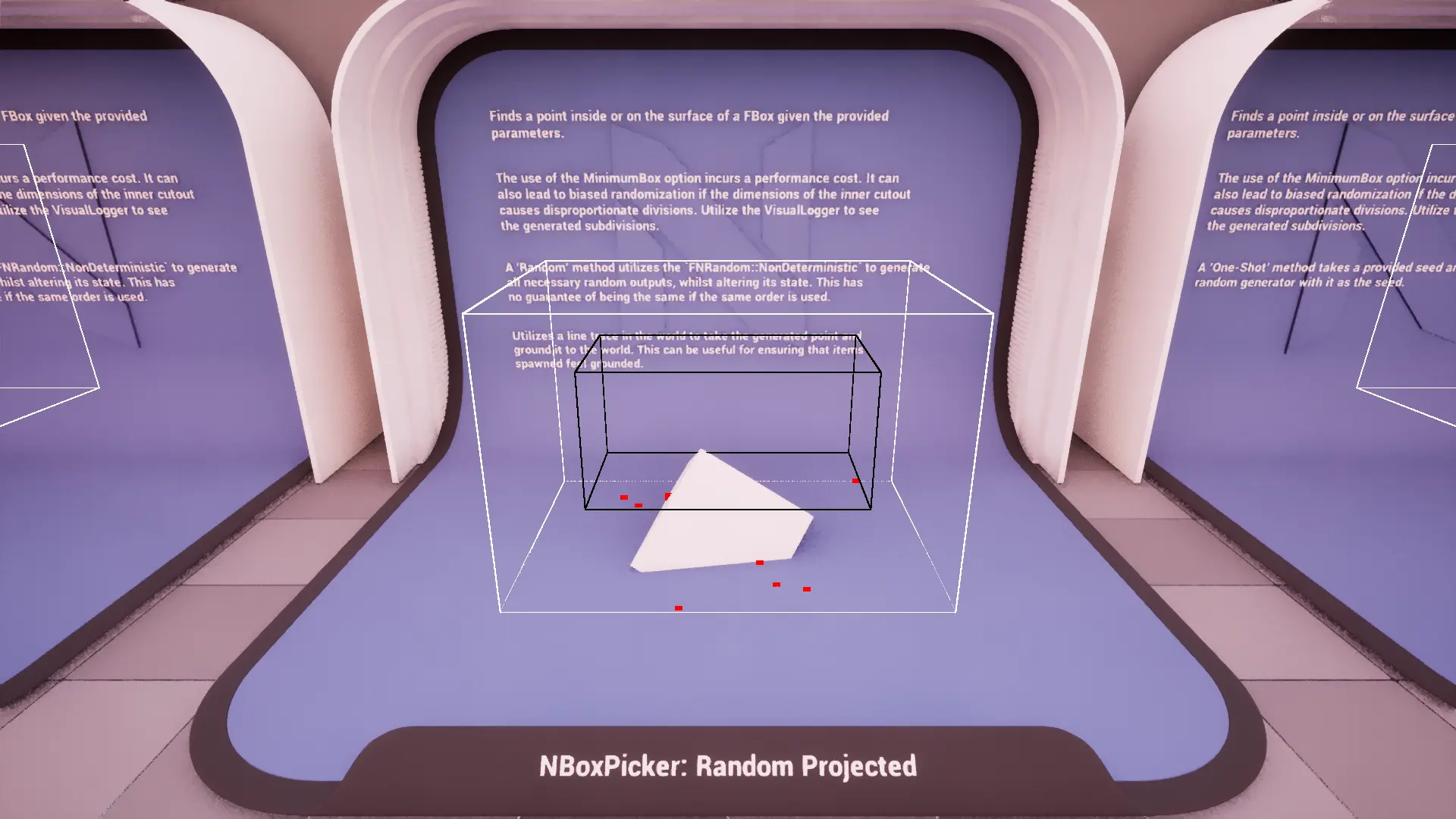

Random Point Projected (IO)

Gets a random point [i]nside or [o]n the FBox and projects it in the given direction.

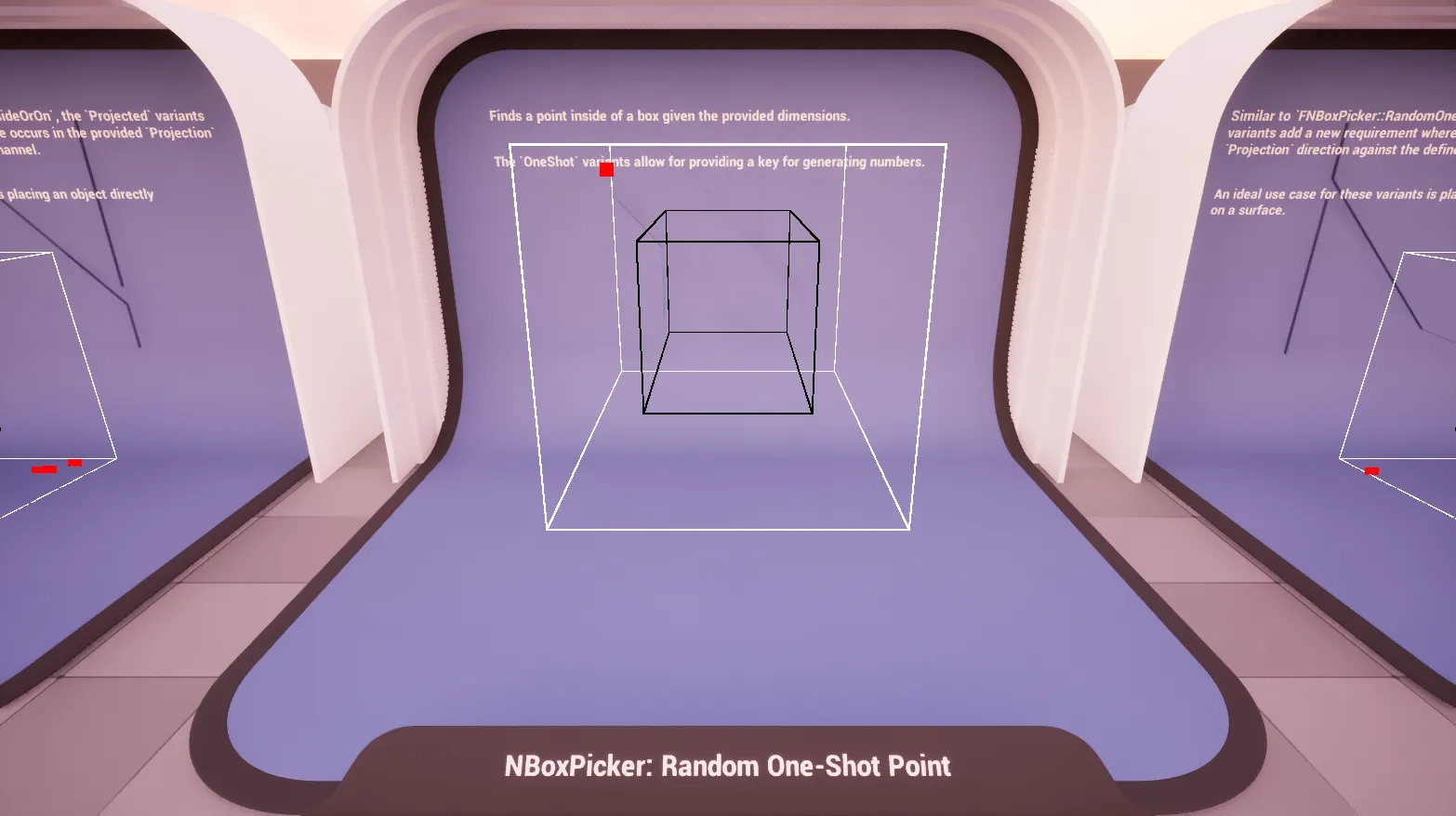

Random One-Shot Point (IO)

Gets a random point [i]nside or [o]n the FBox using a one-shot seed.

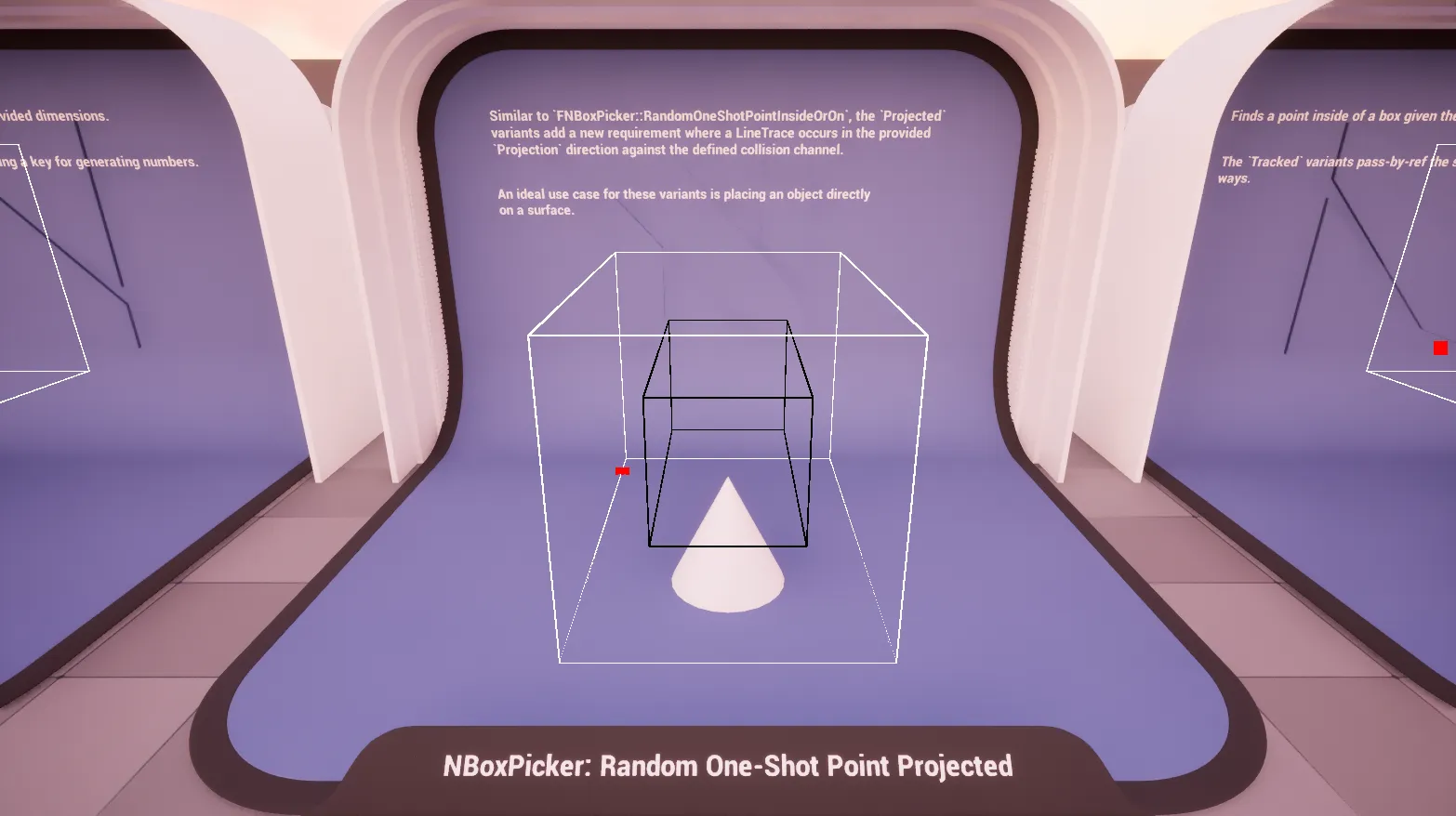

Random One-Shot Point Projected (IO)

Gets a random point [i]nside or [o]n the FBox using a one-shot seed and projects it in the given direction.

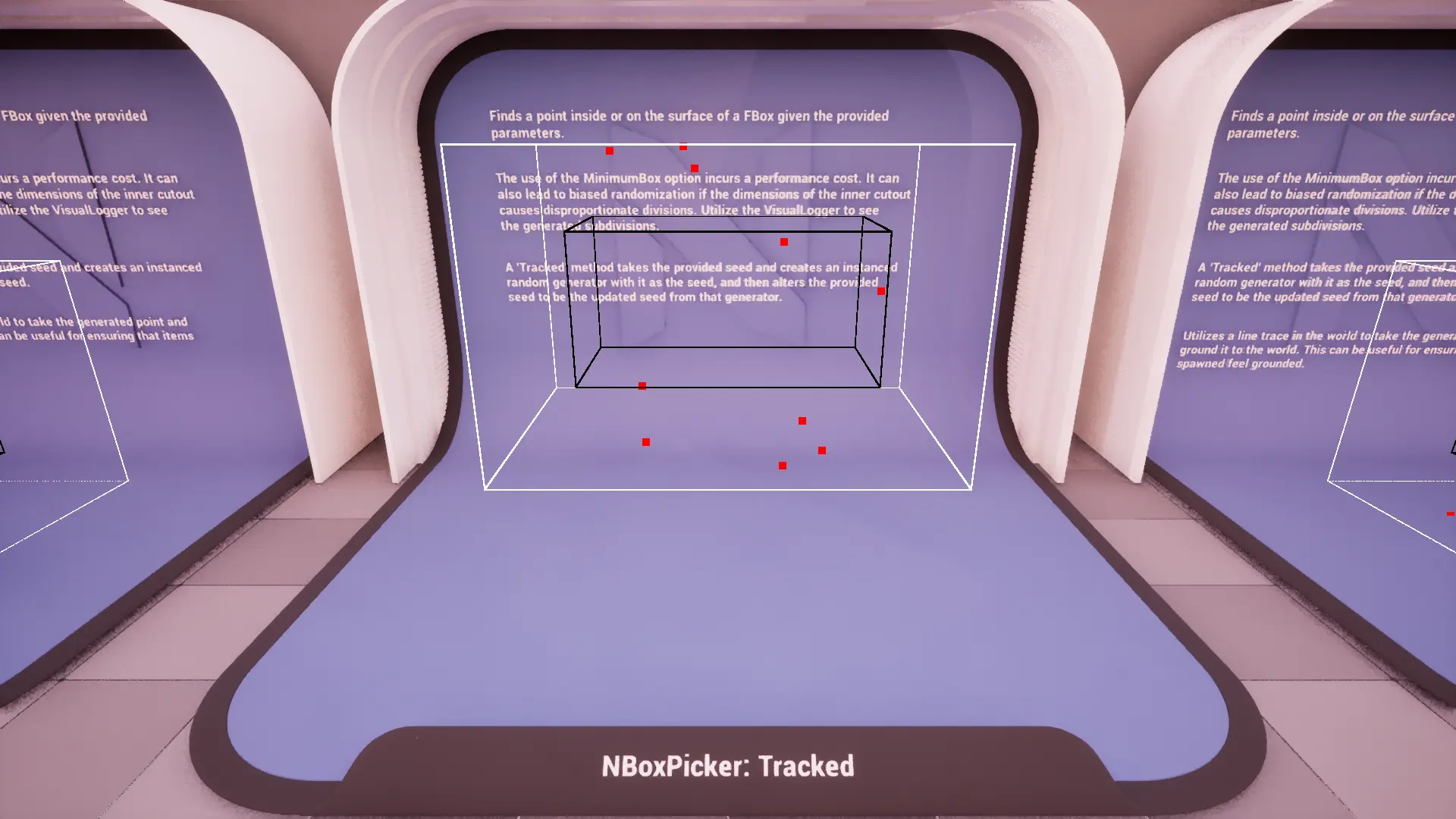

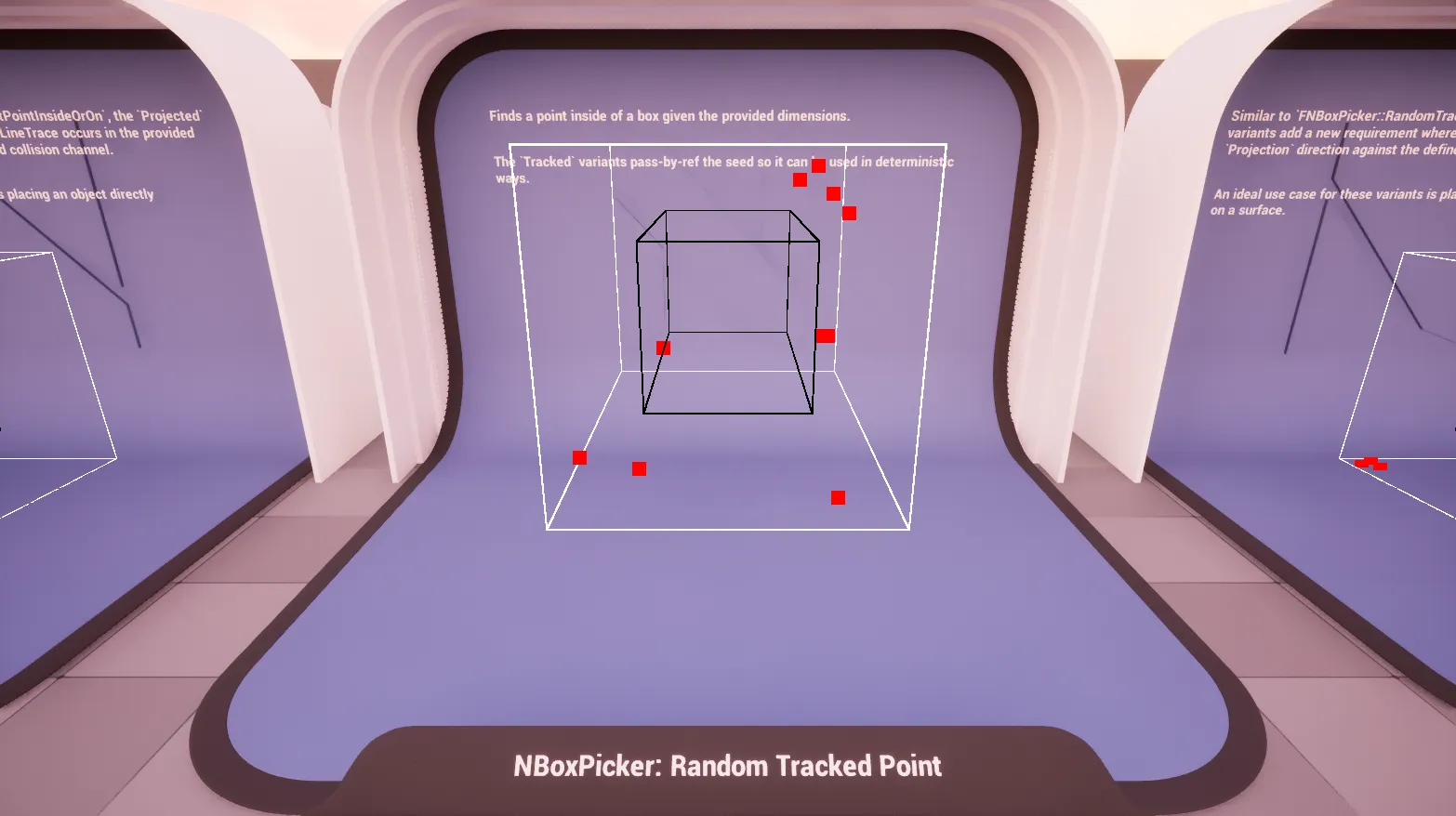

Random Tracked Point (IO)

Gets a random point [i]nside or [o]n the FBox using a tracked seed. The seed is incremented each time this function is called.

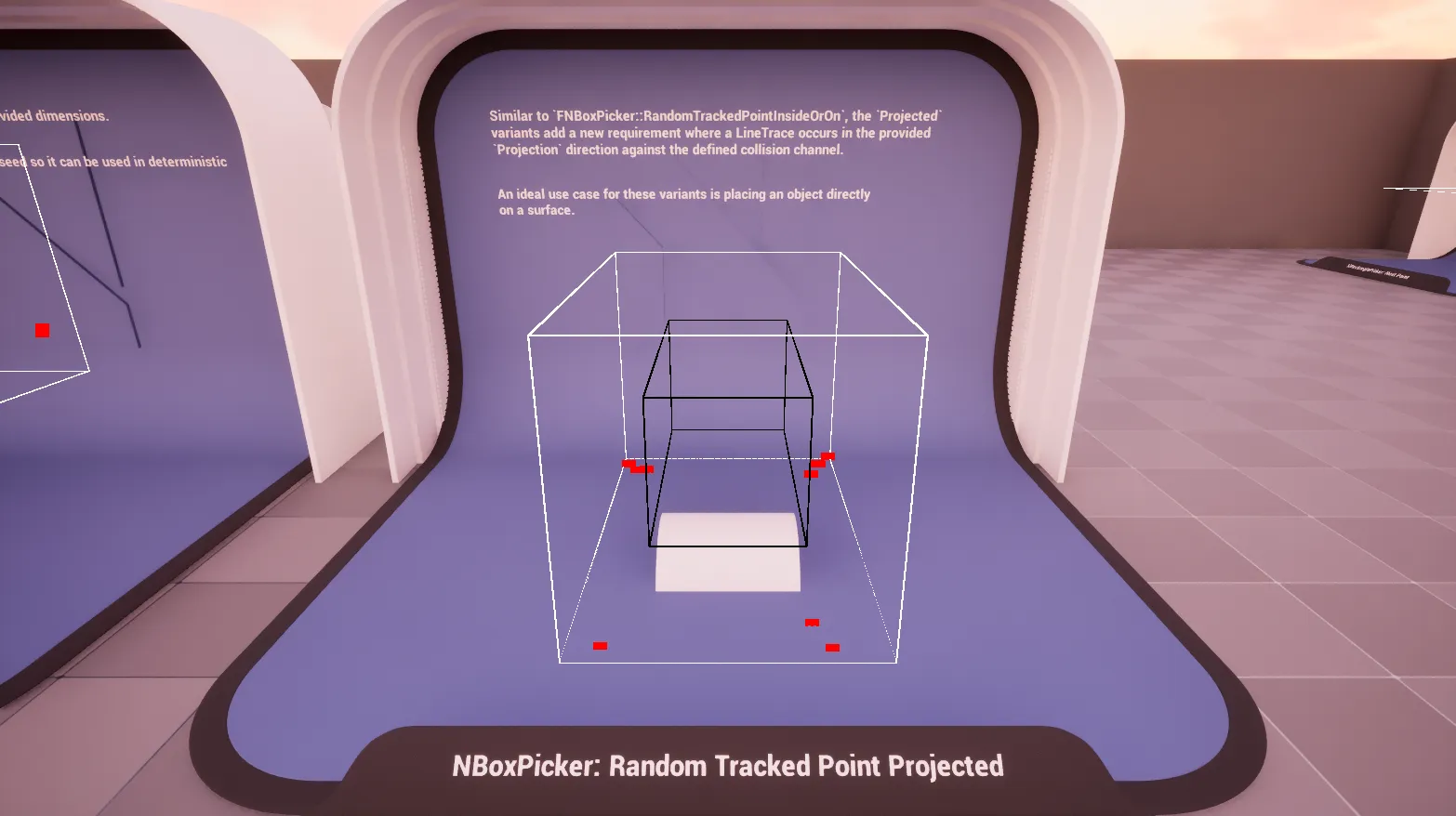

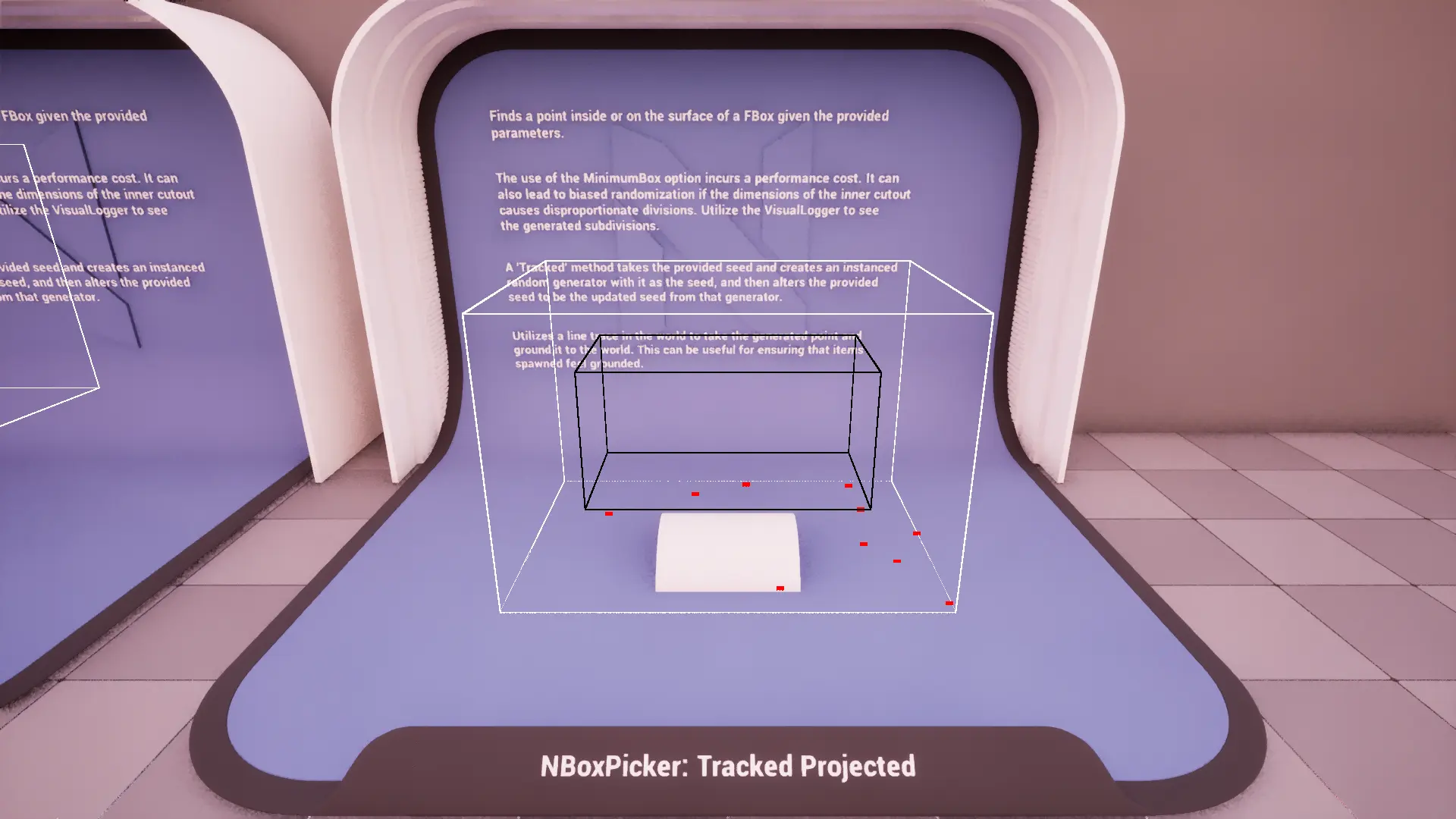

Random Tracked Point Projected (IO)

Gets a random point [i]nside or [o]n the FBox using a tracked seed and projects it in the given direction. The seed is incremented each time this function is called.

Parameters

Variant	Parameter	Type	Description	Default
Base	Origin	FVector&	The center world point of the FBox.
Base	MinimumRadius	FBox&	The minimum dimensions to use when generating a point.
Base	MaximumRadius	FBox&	The maximum dimensions to use when generating a point.
Simple	Dimensions	FBox&	The dimensions of the FBox.
Projected	WorldContextObject	UObject*	Object that provides access to the world, usally auto-filled in Blueprint.	WorldContext
Projected	Projection	FVector	Direction and distance for the line trace.	FVector(0,0,-500.f)
Projected	CollisionChannel	ECollisionChannel	The collision channel to use for tracing.	ECC_WorldStatic
Tracked	Seed	int32&	The seed to be used when generating, and altered for determinism.
One-Shot	Seed	int32	The throw-away seed used when generating.
