Arc

Base:

UBlueprintFunctionLibrary

Type:

UNArcPickerLibrary / FNArcPicker

Header File:

NexusActorPools/Public/NArcPickerLibrary.h

Provides various functions for generating points inside or on the surface of an arc using different random generation strategies (deterministic, non-deterministic, seeded).

The UNArcPickerLibrary wraps the native FNArcPicker functionality in a Blueprint friendly manner. Should you be wanting to utilize a picker in native code it is best to directly reference FNArcPicker directly to avoid the abstraction layer as it has a similar API.

Methods

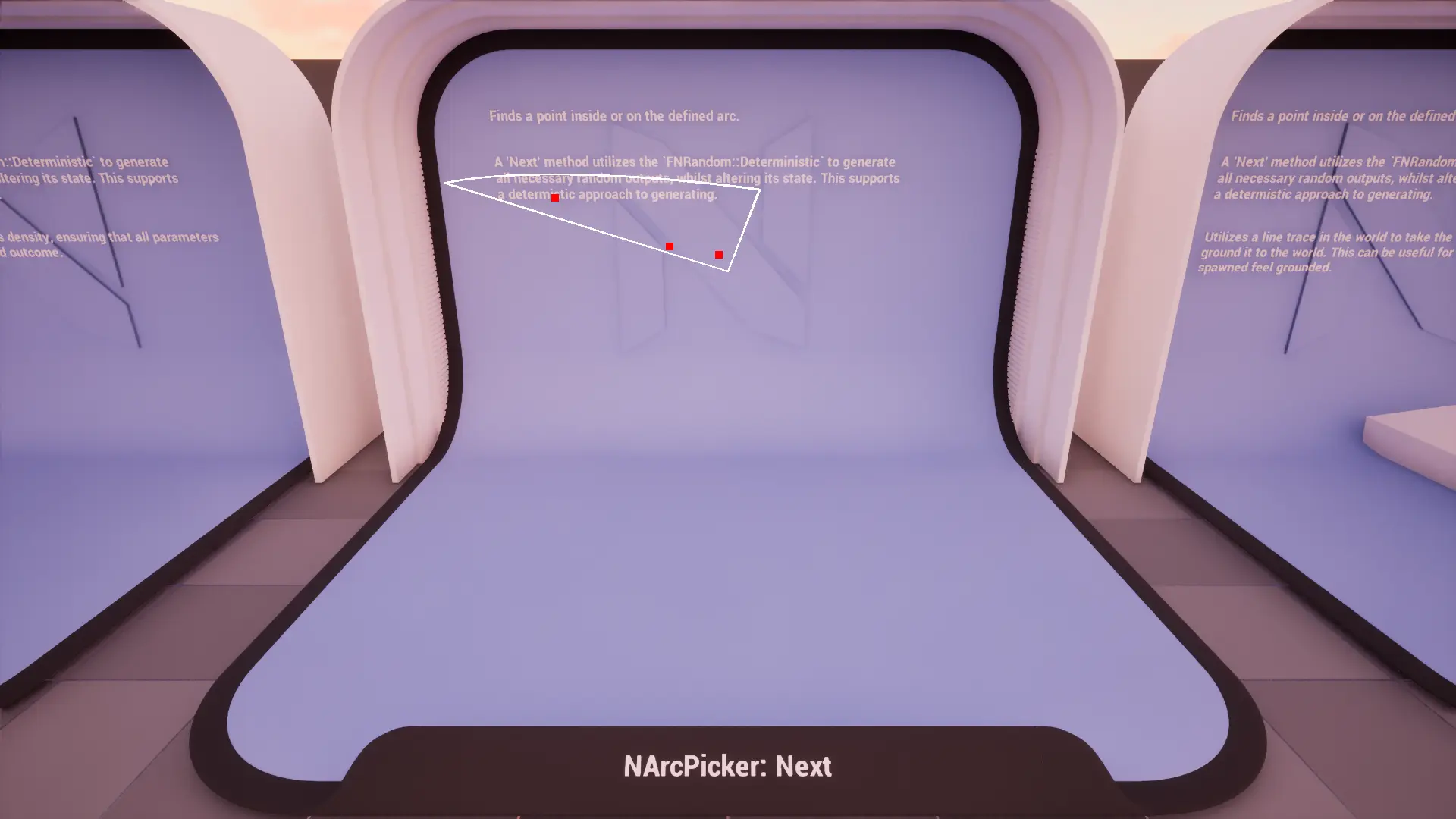

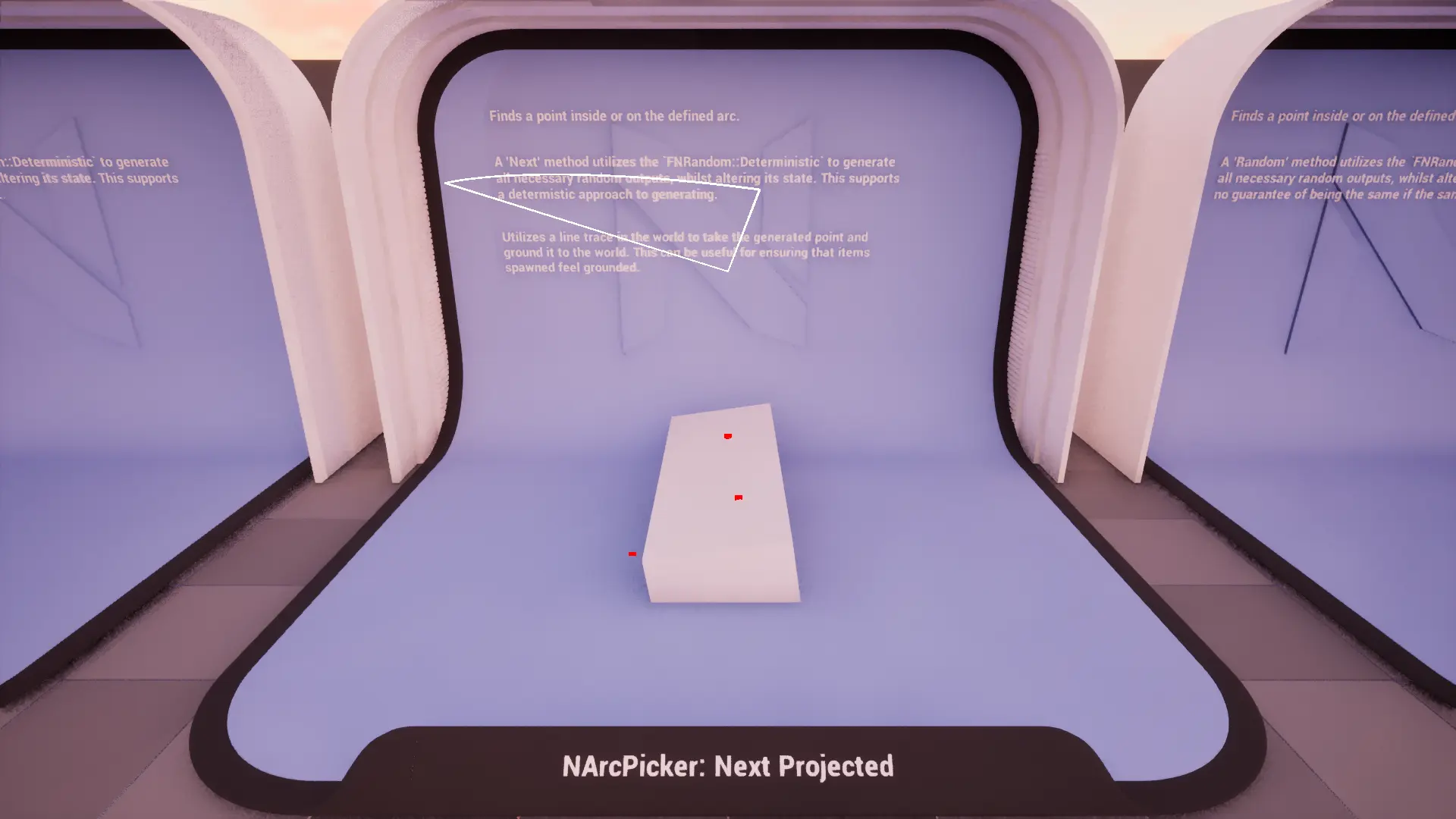

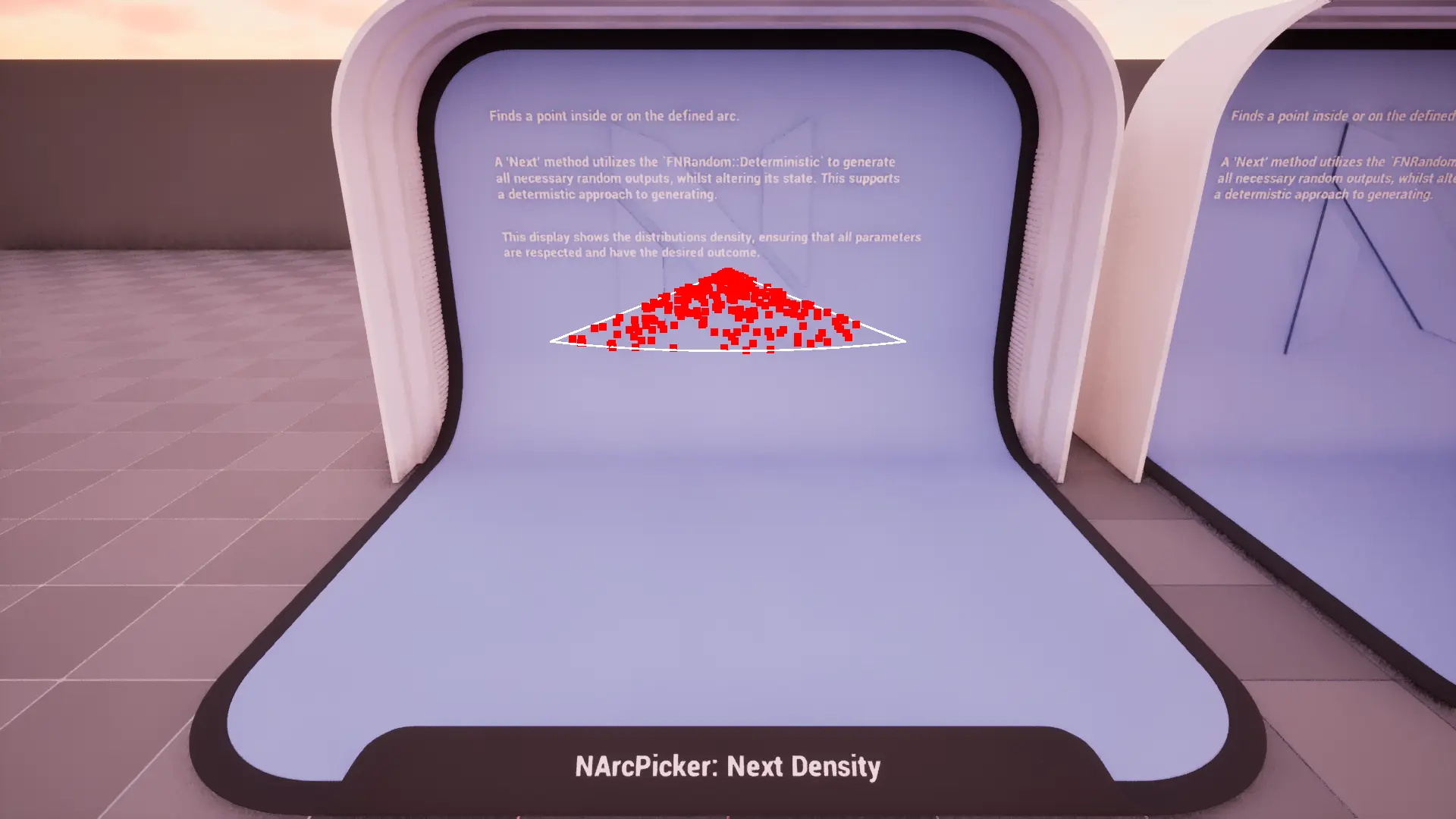

Next Point

Gets the next deterministic point inside or on an FArc.

info

Uses FNRandom::Deterministic to ensure reproducible results.

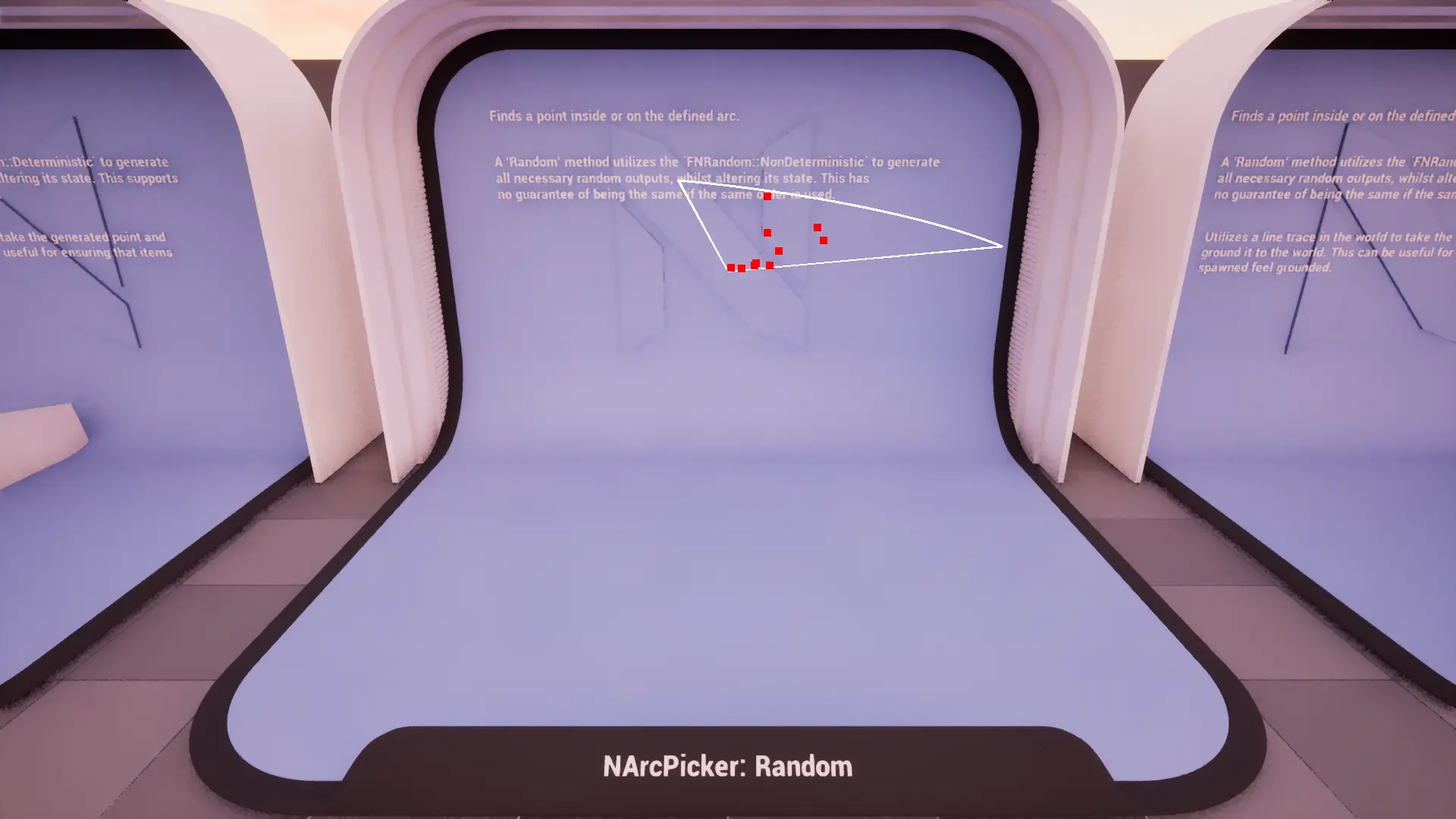

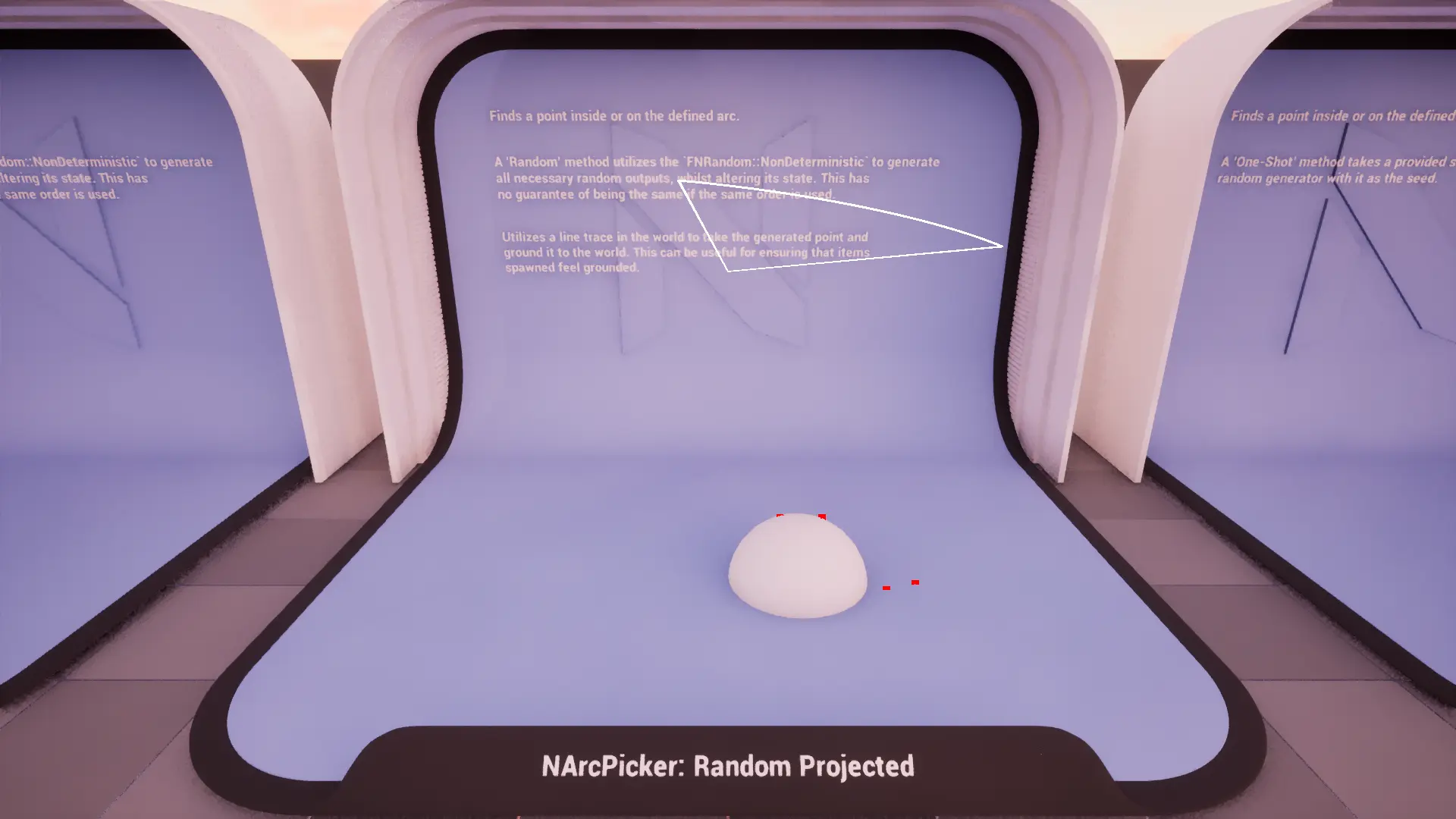

Random Point

Gets a random point inside or on an arc.

info

Uses FNRandom::NonDeterministic to produce pseudo-random results.

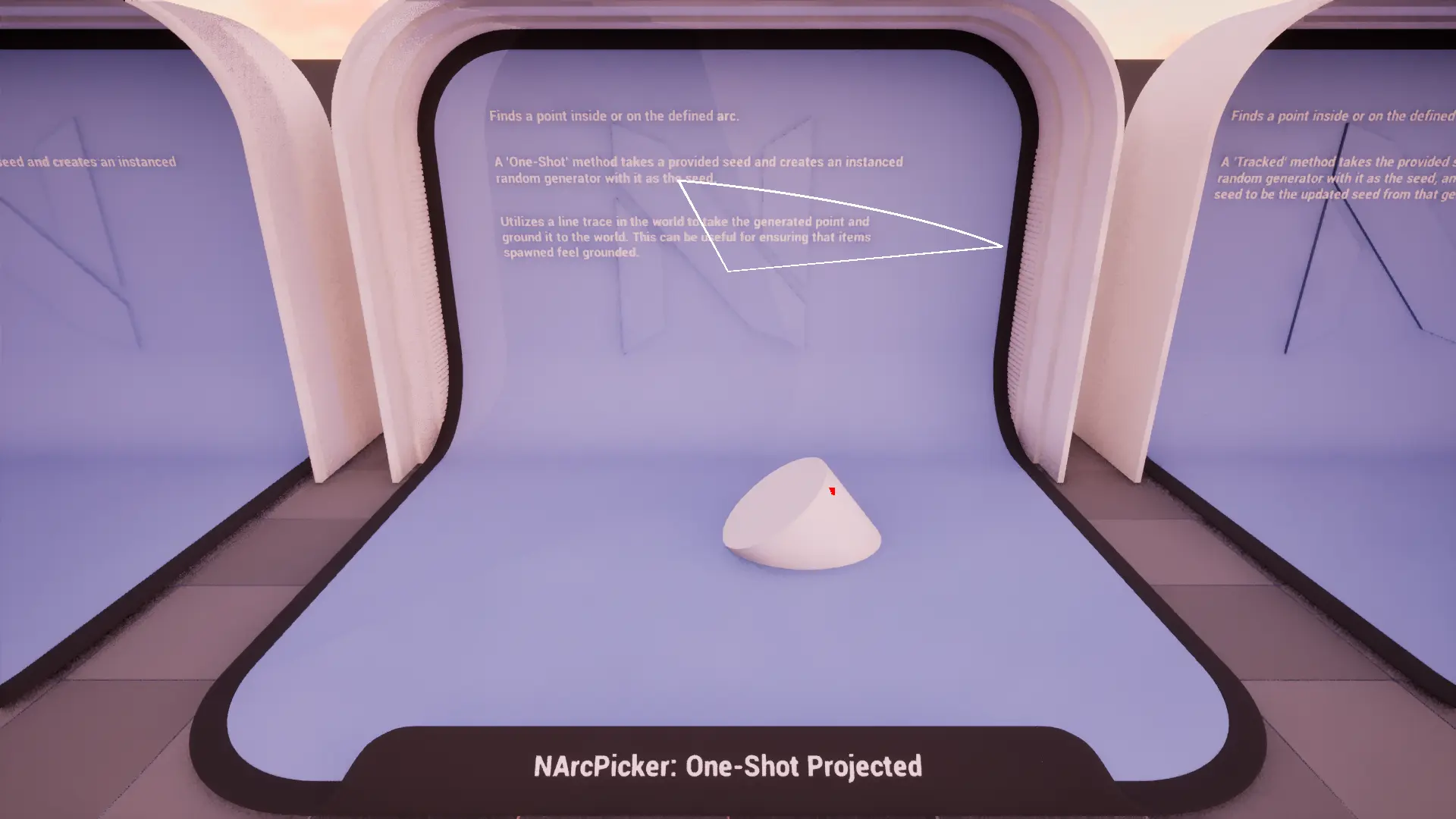

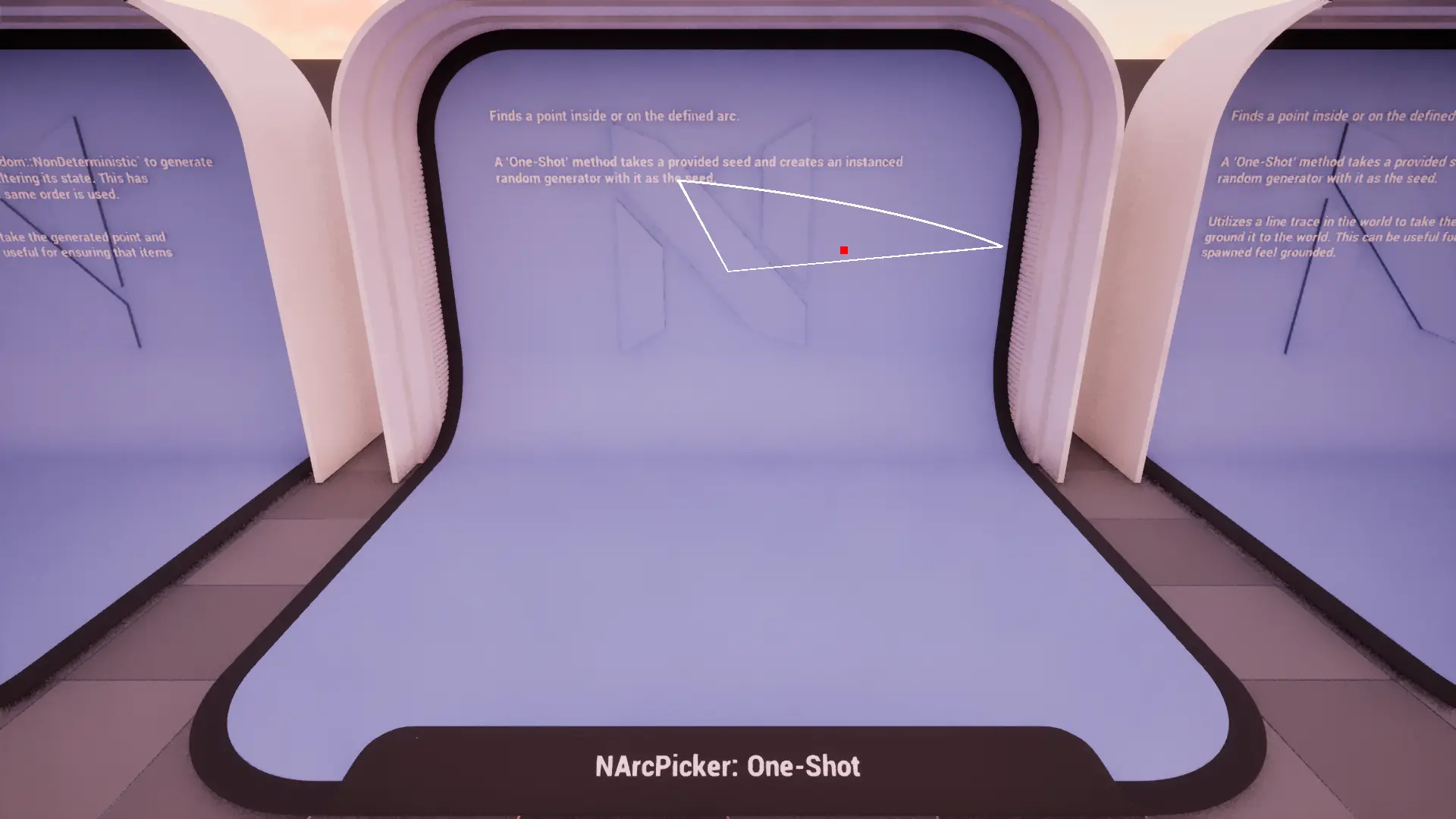

One-Shot Point

Gets a random point inside or on an arc using a one-shot seed.

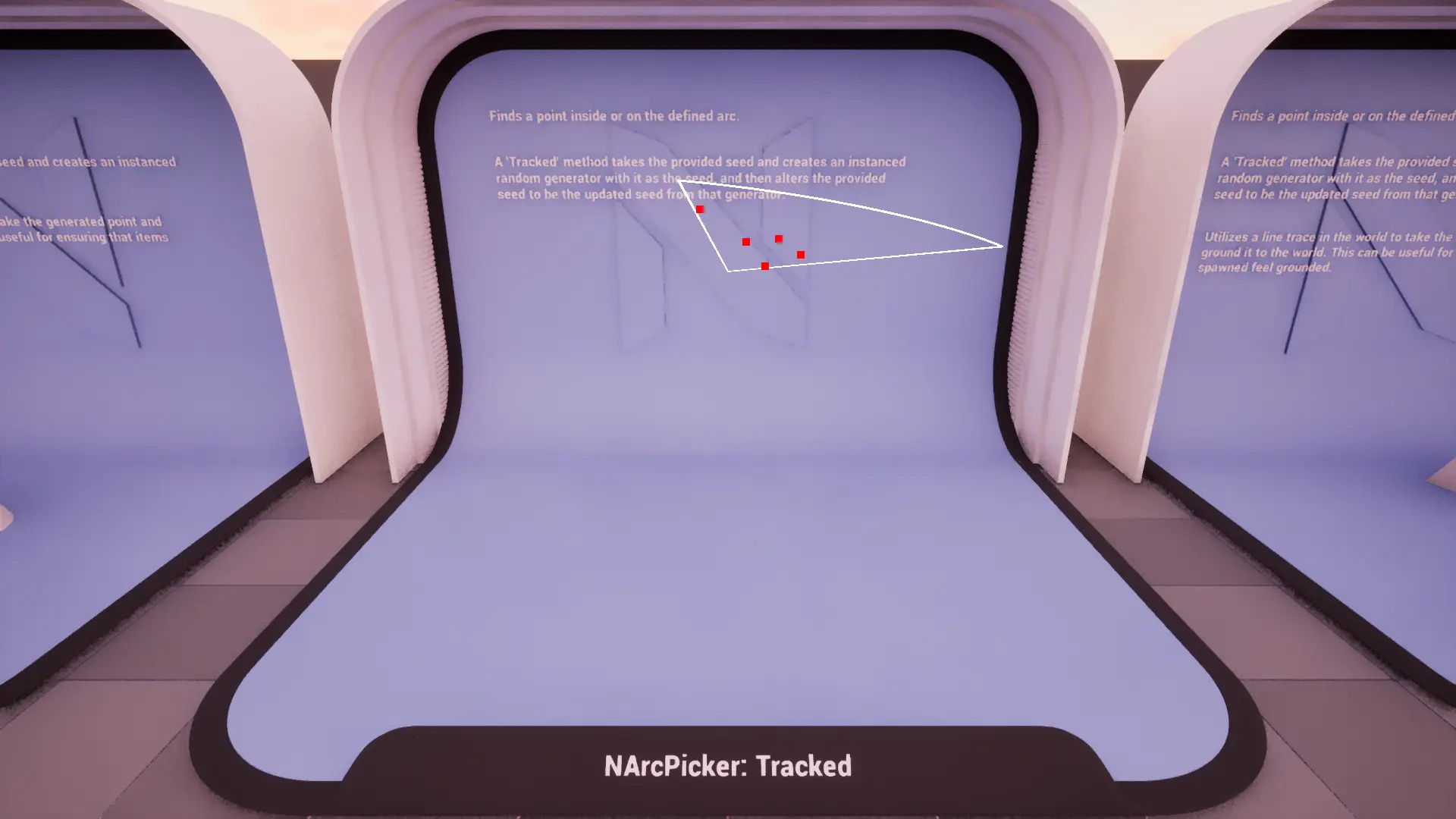

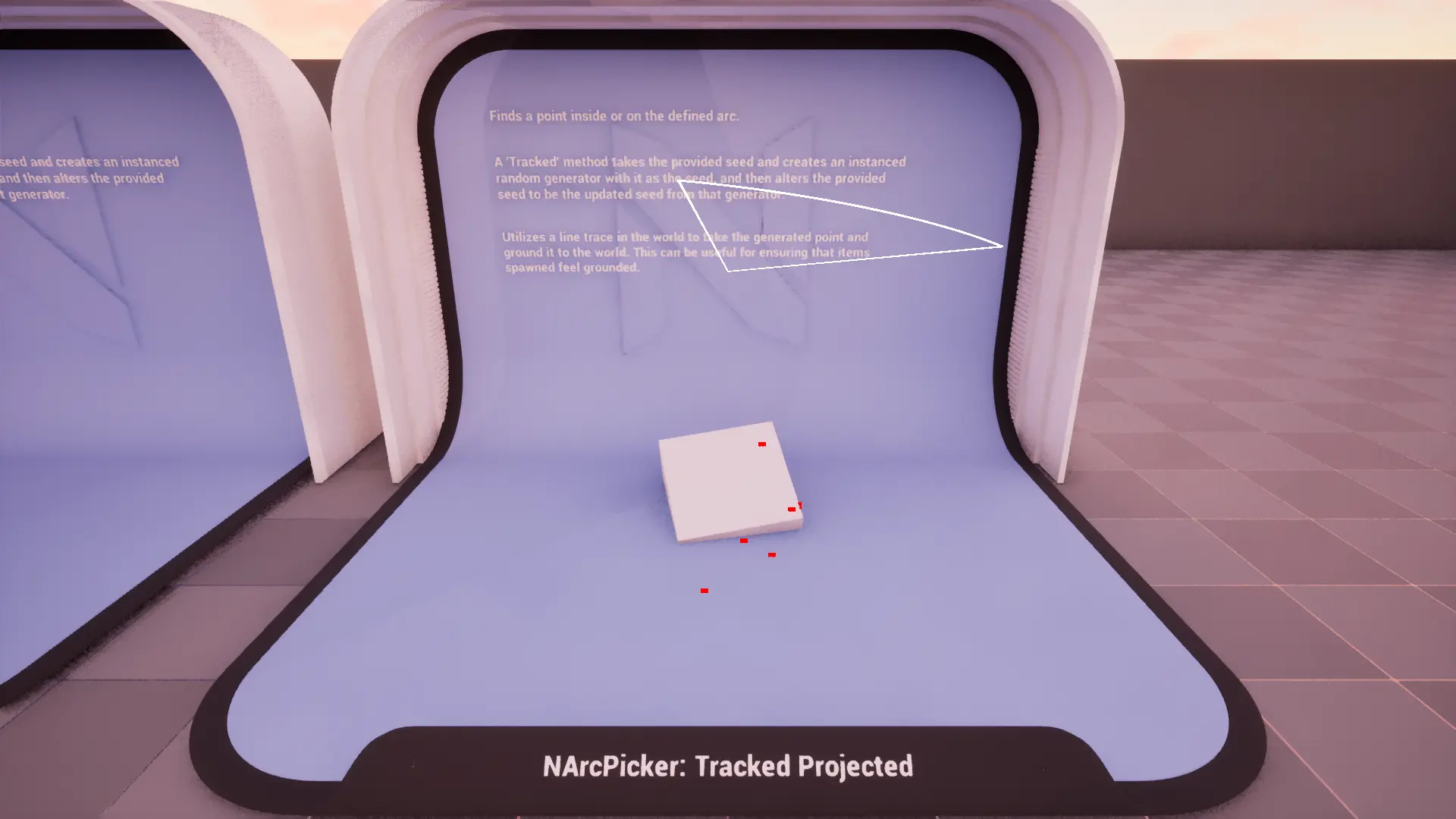

Tracked Point

Gets a random point inside or on an arc using a tracked seed. The seed altered for each Count.

FNArcPickerParams

Base

Parameter	Type	Description	Default
Count	int	The number of points to generate in a single pass.	1
CachedWorld	TObjectPtr<UWorld>	The world for line tracing and drawing.
ProjectionMode	ENPickerProjectionMode	Should the point be projected somewhere?	ENPickerProjectionMode::None
Projection	FVector	Direction and distance for the line trace.	FVector(0,0,-500.f)
CollisionChannel	TEnumAsByte<ECollisionChannel>	The collision channel to use for tracing.	ECC_WorldStatic

Arc

Parameter	Type	Description	Default
Origin	FVector	The center point when attempting to generate new points.	FVector::ZeroVector
Rotation	FRotator	The base rotation used when trying to determine the arc angle.	FRotator::ZeroRotator
Degrees	float	The degrees of the arc.	90.f
MinimumDistance	float	The minimum distance to start finding points.	0.f
MaximumDistance	float	The maximum distance to find points.	500.f
