Bone Component

Base:

USceneComponent

Type:

UNBoneComponent

Header File:

NexusWorldAssembly/Public/Organ/NBoneComponent.h

Wikipedia Definition

A bone is a rigid organ that constitutes part of the skeleton in most vertebrate animals. Bones provide structural support, protect internal organs, enable mobility, and serve as vital sites for producing blood cells and storing minerals.

A Bone functions as a connection point outside of a Cell that is used as a starting point during World Assembly. The overall goal is to connect all encompassed bones in an Organ.

The connecting of Junctions to bones utilizes the same ruleset for matching that Junction-to-Junction connections must meet.

warning

Currently, only the Bone built-in to the Organ is used as a starting point for World Assembly. Multi-bone support is targeted for the 0.4.0 release. Explicitly, Cell placement between bones is not functional, nor is bone-to-bone between Organs.

A Bone represents itself in the world as a white-lined Junction, with identical indicators.

Bone Actor

A ANBoneActor is available for situations where you want a bespoke Bone, and do not want to attach a UNBoneComponent to another AActor.

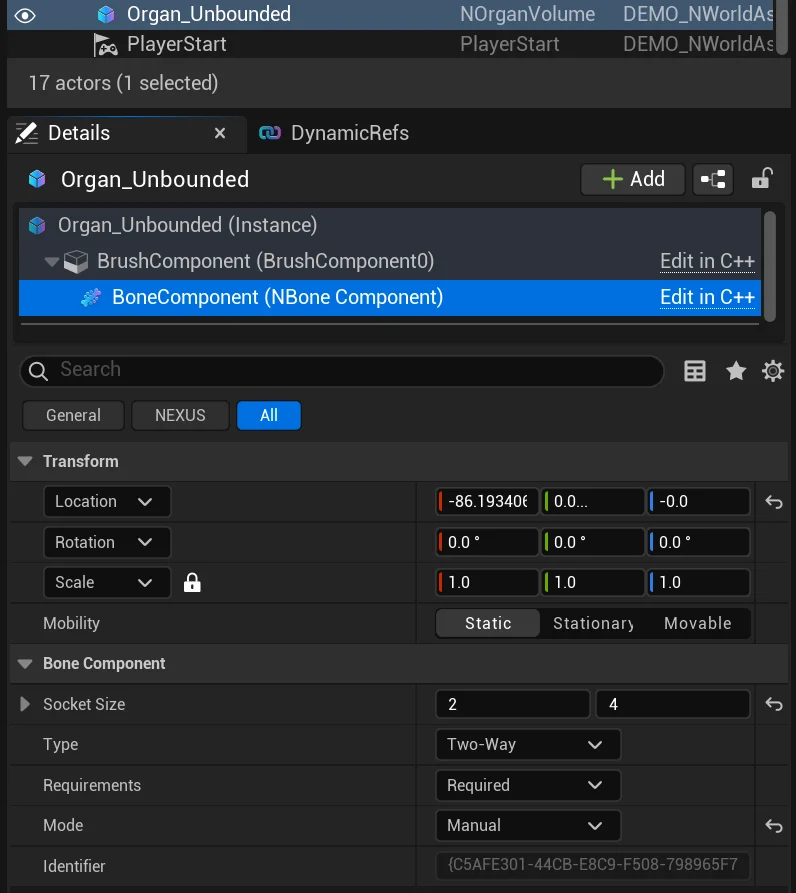

Component Details

Setting	Type	Description	Default
Socket Size	FIntVector2	Size of the socket in grid units (width, height), used for matching against Junctions.	(2,4)
Type	ENCellJunctionType	NOT IMPLEMENTED	Two-Way
Requirements	ENCellJunctionRequirements	NOT IMPLEMENTED	AllowEmpty
Mode	ENBoneMode	The Bone placement behavior at author-time.	Automatic
Identifier	FGuid	A pseudo-unique identifier for the Bone component.	N/A

ENBoneMode

Mode	Description
Manual	Allows for manual placement of the Bone inside of its volume.
Automatic	Attempts to place the Bone at the extreme of the volume based on the project settings .
Disabled	Disables the Bone from being used inside of any assembly operation.
