Actor Pool Spawner Component

Base:

UActorComponent

Type:

UNActorPoolSpawnerComponent

Header File:

NexusActorPools/Public/NActorPoolSpawnerComponent.h

A fundamental spawning component which will interact with the UNActorPoolSubsystem to periodically spawn defined AActors in predefined distributions (shapes).

warning

This is a rudimentary example of how to spawn things; it has some use cases in a shipping game, but should not be the primary spawing source.

Component Settings

Setting	Type	Description	Default
Spawning Enabled	bool	Is the component going to Spawn enemies when ticked?	true
Server Authoritative	bool	Should the spawner only spawn on servers, ignoring itself on client-only.	true
Spawn Rate	float	The rate at which things should be spawned.	0.5f
Offset	FVector	Offset from the component location to treat as the origin when calculating a position to spawn an AActor.	(0,0,0)
Distribution	ENActorPoolSpawnerDistribution	The specific distribution-shape to use when selecting a point/location to spawn an AActor at.	APSD_Point
Distrubtion Range	FVector	The axis-based ranges to use when outlining the shapes size, and or any sort of exclusionary range.	(1.f,20.f,20.f)
Spline Level Reference	FComponentReference	When ASPD_Spline is selected as Distribution, this option will be visible to select a SplineComponent in the current level.	nullptr
Count	int32	The number of items to spawn at any given spawn event.	1
Randomize Seed	bool	Should a random seed be selected on BeginPlay() for this component?	false
Seed	int32	The seed used for all random selection related to this component.	0
Templates	FNActorPoolSpawnerTemplate[]	A weighted collection of AActors and their default FNActorPoolSettings for usage with the component.	Empty

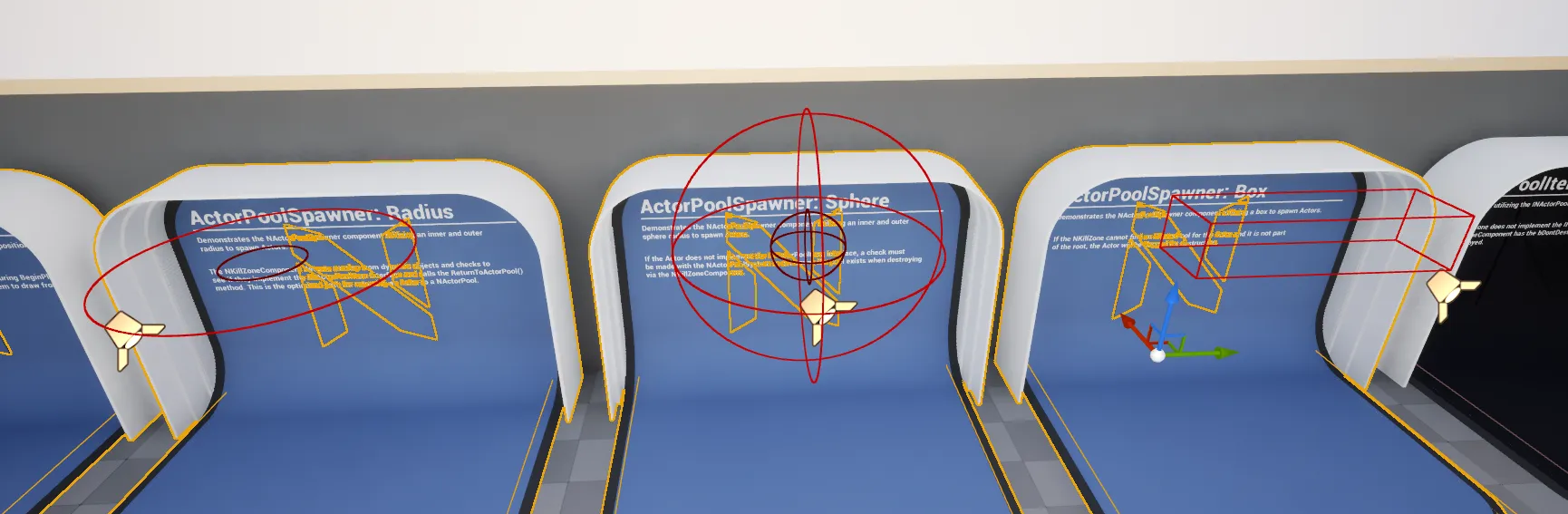

Distribution Types

Native	Display	Description
APSD_Point	Point	Always spawn at the given component's location + Offset.
APSD_Radius	Radius	Selects a point at the given component's location + Offset, with a minimum radius of DistributionRange.X and a maximum radius of DistributionRange.Y on the horizontal axis.
APSD_Sphere	Sphere	Selects a point at the given component's location + Offset, in a sphere, with a minimum radius of DistributionRange.X and a maximum radius of DistributionRange.Y.
APSD_Box	Box	Selects a point at the given component's location + Offset, in an axis-aligned box, using the DistributionRange for size.
APSD_Spline	Spline	Selects a point along the target SplineLevelReference.

UFunctions

The methods exposted to Blueprint.

Spawn

/**
  * Initiate a spawn call for the component, ignoring any timers.
  * @param bIgnoreSpawningFlag Should the internal spawning flag state be ignored?
  */
void Spawn(bool bIgnoreSpawningFlag = false);

Disable Spawning

/**
  * Disables the component's internal flag to stop any spawning from occuring.
  */
void DisableSpawning()

Enable Spawning

/**
  * Enables the component's internal flag to allow spawning to occur (on by default).
  */
void EnableSpawning()
